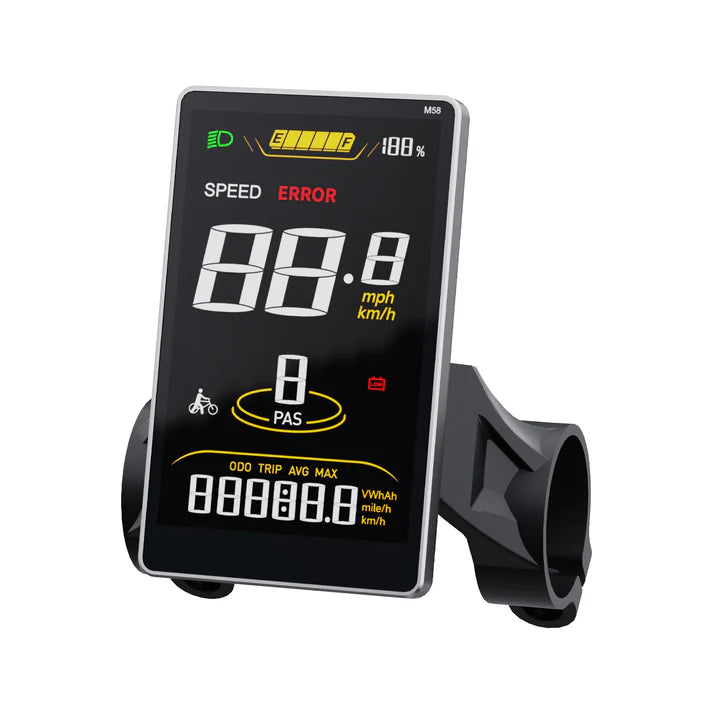

Bafang SW2-M58 Full Color Display (UART)

Bafang SW2-M58 Full Color Display (UART)

** Compatible with the Bafang BBSHD and BBS02

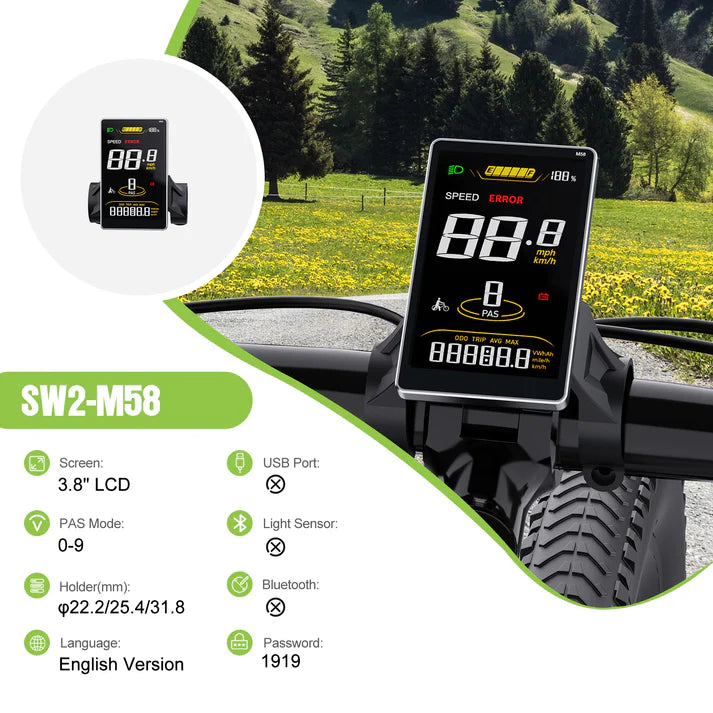

Display Core Data

Screen Size: 3.8"

Voltage: 24V/36V/48V/52V

Handlebar Size: 22.2mm/25.4mm/31.8mm

PAS Level: 3/5/9

Headlight: On/Off

Walk Mode: Yes

Password: 1919

Auto-Off：Yes

Time: Yes

MAX/AVG/CUR Speed: Yes

TRIP/ODO: Yes

Battery Level: Yes

Error Code: Yes

Working Temperature: -20~60°C

Protection Rating: IP65

Certification: CE, ROHS, EN13849, FCC

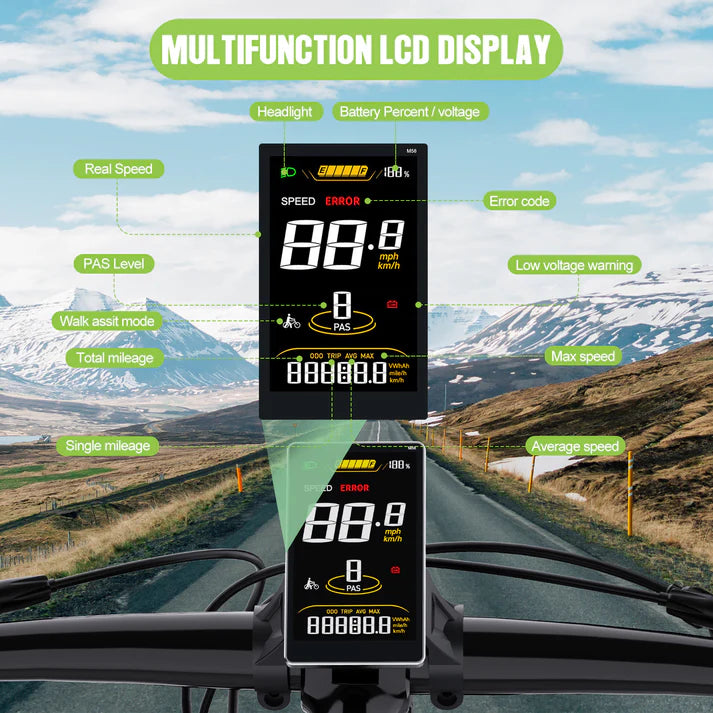

The Multifunction LCD Display

On SW2-M58 Interface you can see the headlight mark, voltage/percentage of the battery, real-time speed, error code, PAS level, low voltage warning, walk assist mark, mileage, speed, etc.

3.8" Large Colorful LCD

The Varstrom SW-M58 features a larger 3.8" LCD display, and it support all Varstrom conversion kits. For the installation, SW2-M58 fits handlebars with diameters of 22.2mm, 25.4mm, and 31.8mm for wide compatibility.

Support Advanced Settings

To access the advanced settings, you will need the password which is 1919. In the advanced settings, you can do customize settings such asacklight Brightness, System Unit, Auto-Off Time, Pedal Assist Level, ODO Clearance, Voltage Sampling, Wheel Size, Error Code, Boot Password, etc.

Support Walking Assistant Mode

The modified bicycle will increase its weight by 10 to 20 kg. This will require more strength when you move the bicycle, and the walking assistant mode can help you move the bicycle effortlessly.

Display_user_manual
