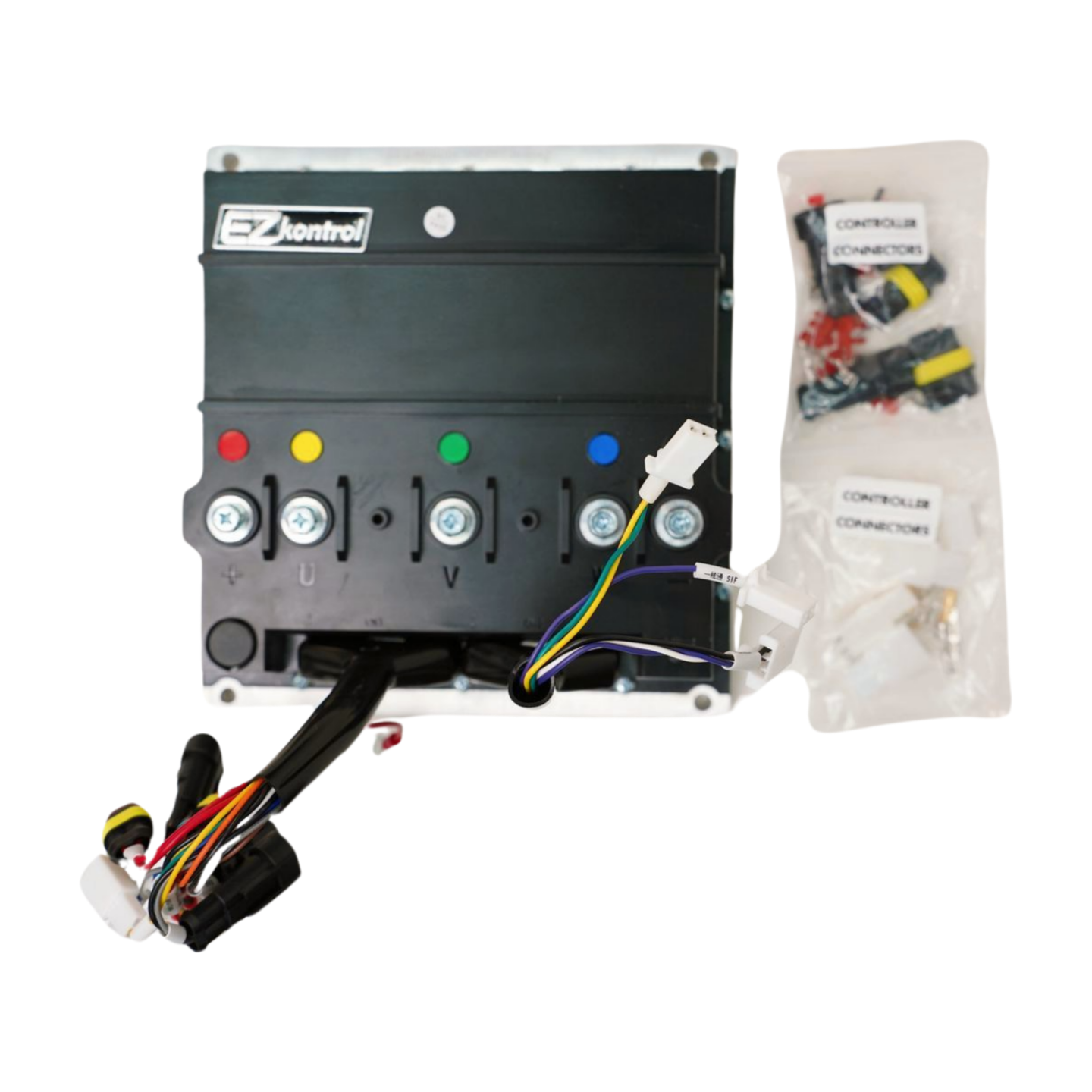

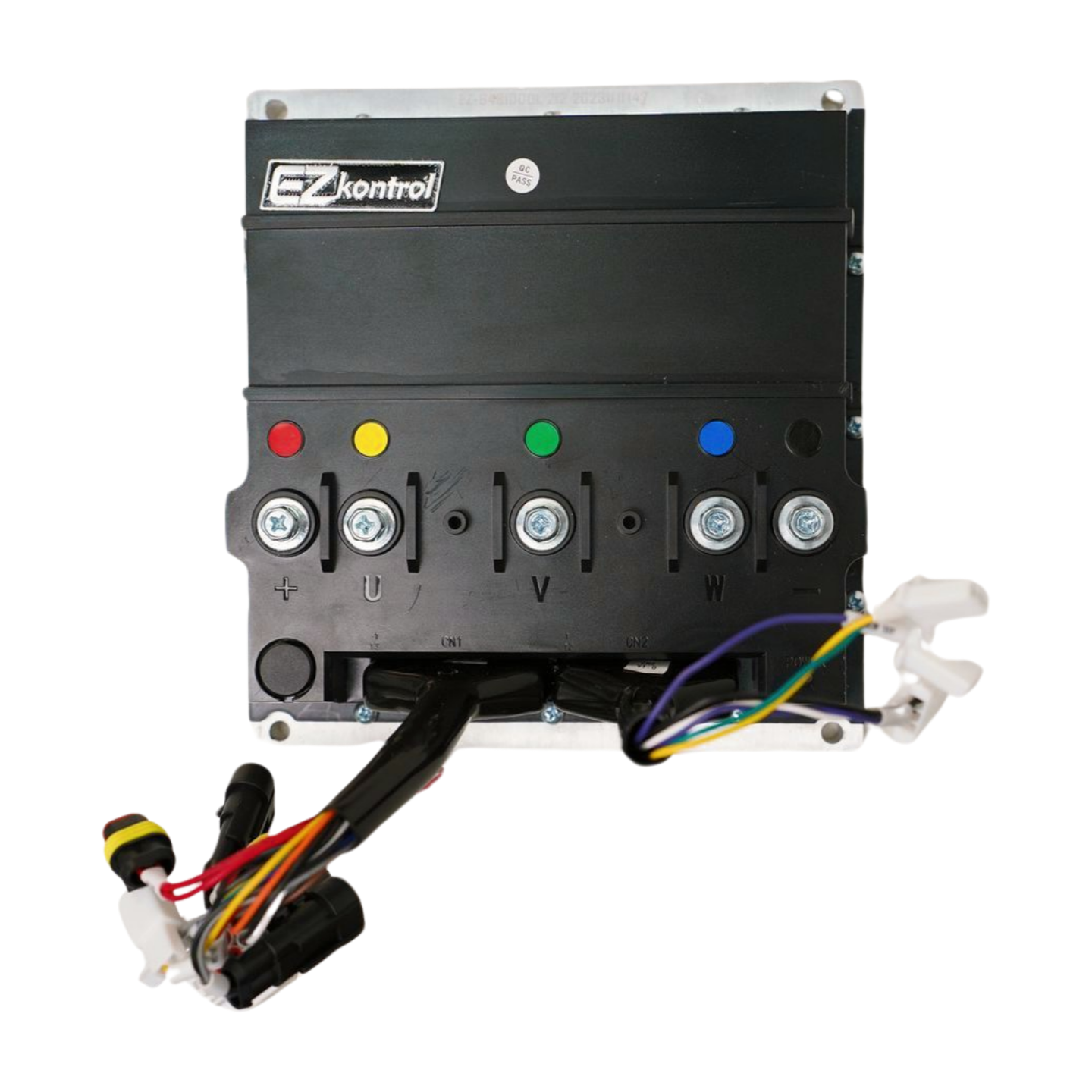

EZkontrol 144 Volts Universal BLDC Motor Controller

EZkontrol 144 Volts Universal BLDC Motor Controller

(Sine-wave or Square-wave Control in ONE controller - Programmable) We are proud to introduce our latest innovation – the High-Performance BLDC Sinewave Controller, a comprehensive motor control solution that will transform the way you manage your motor systems. Our controller boasts an array of advanced features that make it the ideal choice for a wide range of applications, from electric vehicles to industrial automation. Here's a glimpse of what our revolutionary BLDC Sinewave Controller has to offer: The EZkontrol BLDC motor controller (Field Oriented Control) series are finally here. The flagship “E” series is capable of delivering up to 40KWs of power at a maximum of 240V(dc) or 2000 Amps. You can always find suitable EZ controllers here to drive your brushless DC motors smoothly and efficiently, quick and easy! Modularized product design and effective production offers the best value for your money!   Armed with powerful ARM 32-bit Cortex-M4 core processors, it will chew through vector control algorithms at lightning speed, delivering Real-Time torque, excitation, speed and power control as well as zero-delay monitoring functions via Bluetooth. Gone are the days of a dedicated programming device, old USB cables and confused interfaces. The EZkontrol’s simple and intuitive automatic self-learning calibration of motor parameters allows you to get your motors up and running in no time… … on your Mobile Phone! … via built-in Bluetooth! … on a floating App! (Download Android Version: EZ-Tune.apk v1.0.5 20231007 -- Code safety checked!) … obtained via QR code! There are hundreds of programmable control parameters for you to play around and fine tune your drive system to satisfy your expectations! Sine-Wave or Square-Wave Control? You can simply choose Sine Wave control or Square Wave control in the same EZ controller by specifying the control mode via App. Get firmware updates online the same EZ way! It doesn’t get any EZ-ier than this! It fully supports OTA firmware upgrade via your smart phones. Can it CAN? EZkontrol supports multiple communication protocols and interfaces such as CAN-BUS, RS485, UART etc, so yes it CAN enabled. We are willing to provide free sample source codes for your quick-start CAN-BUS application development. EZkontrol controllers are Liquid-Cooling Ready with 4 extruded through holes with standard water tap threads openings, in its flat bottom aluminum base for the best cooling effect. User can choose any 2 of these 4 holes to create water circulation via external cooling pump in case the liquid cooling is required in your drive system. FREE downloadable professional looking Speedometer Apps for Android (Download EZkontrol.apk) and iOS (App Store search: EZkontrol), quick connecting your smartphone to EZ controller via blue-tooth interface (built-in your controller). The Apps also create very useful running log file to record motor and controller status, running data (date-time, voltage, current, rpm, motor temperature, ..., etc.) with date-time stamp at each time interval (user definable in seconds).   Wide Coverage of Power Range: 48Vdc-240Vdc | 400-2500 Amps | 1KW-40KW

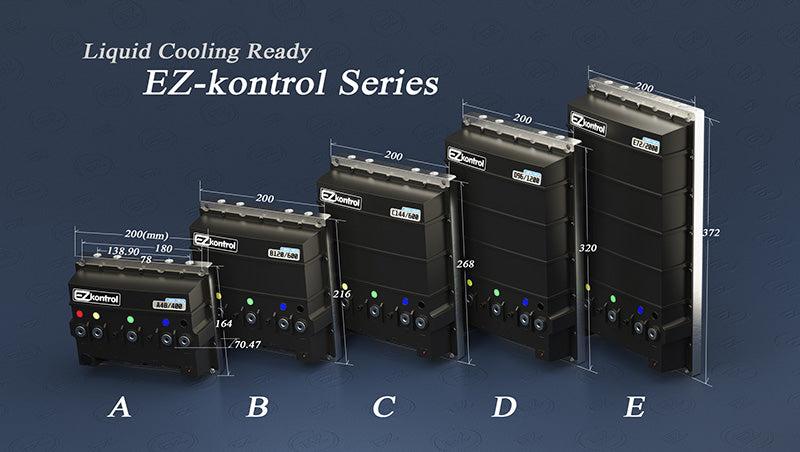

Model No.	Rated Voltage (Vdc)	Max. Voltage (Vdc)	Max. Phase Current (A)	Rated Phase Current (A)	Max. Bus Current (A)	Rated Motor Power (KW)
EZ-A48400	48V	72V	400	160	200	2-4
EZ-A48500			500	200	250	3-5
EZ-B48800			800	320	400	5-8
EZ-B481000			1000	400	500	6-10
EZ-C481200			1200	480	600	7-12
EZ-C481500			1500	600	750	9-14
EZ-E482000			2000	800	1000	12-19
EZ-E482500			2500	1000	1250	14-24
EZ-A72400	72V	95V	400	160	200	3-6
EZ-A72500			500	200	250	4-7
EZ-B72800			800	320	400	7-12
EZ-B721000			1000	400	500	9-14
EZ-C721200			1200	480	600	10-17
EZ-C721500			1500	600	750	13-22
EZ-D722000			2000	800	1000	17-29
EZ-E722500			2500	1000	1250	22-36
EZ-A96300	96V	120V	300	120	150	3-6
EZ-A96400			400	160	200	5-8
EZ-B96600			600	240	300	7-12
EZ-B96800			800	320	400	9-15
EZ-C96900			900	360	450	10-17
EZ-C961200			1200	480	600	14-23
EZ-E961500			1500	600	750	17-29
EZ-E962000			2000	800	1000	23-38
EZ-A120300	120V	145V	300	120	150	4-7
EZ-B120600			600	240	300	9-14
EZ-C120900			900	360	450	13-22
EZ-D1201200			1200	480	600	17-29
EZ-E1201500			1500	600	750	22-36
EZ-A144200	144V	190V	200	80	100	3-6
EZ-B144400			400	160	200	7-12
EZ-C144600			600	240	300	10-17
EZ-D144800			800	320	400	14-23
EZ-E1441000			1000	400	500	17-29
EZ-A240100	240V	290V	100	40	50	3-5
EZ-B240200			200	80	100	6-10
EZ-C240300			300	120	150	9-14
EZ-D240400			400	160	200	12-19
EZ-E240500			500	200	250	14-24

Download EZkontrol User's Manual Here (.PDF format, 4.34MB)

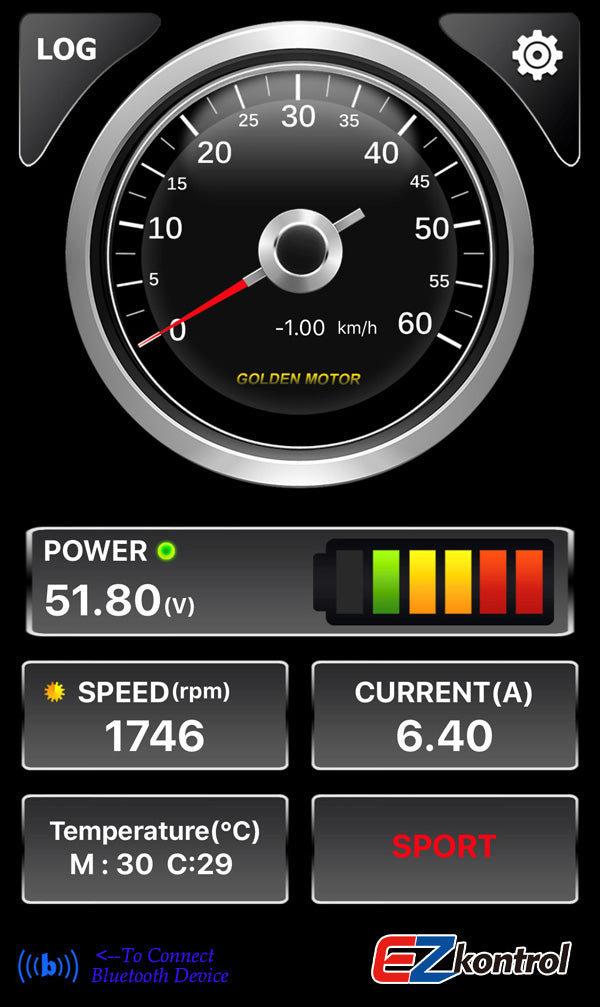

1. Built-in bluetooth, Experience wireless convenience with Bluetooth connectivity, allowing you to monitor and adjust your motor's performance directly from your smartphone or tablet. 2. CAN-BUS Enabled: Enjoy seamless integration with your existing network, thanks to our controller's built-in CAN-BUS support, ensuring rapid and reliable communication between devices. 3. Self Motor Calibrating: Simplify the setup process with our intelligent self-calibrating feature, ensuring optimal performance without the need for complex manual adjustments. 4. Compatible with a variety of motor position sensors: Hall, photoelectric encoder, magnetic encoder and etc. 5. Compatible with a variety of motor temperature sensors, protect the motor from overheating damage. 6. Cruise speed and regenerative braking control 7. Five-level torque, speed, and power can be set separately. 8. Integrated DC contactor controls the circuit, and also other modes available. 9. Advanced and efficient software algorithms, guaranteed hardware circuits, excellent mechanical structure and thermal structure, ensure the stable and reliable quality. 10. PC material V-0 flame-retardant casing cover. 11. IP66 protection grade.
