Product Description

EggRider is an advanced Bluetooth e-bike display with a mobile app, allowing you to enhance the performance of your e-bike ride.

You can get your riding statistics and customize your riding profile.

Features:

  • Lightweight and compact design keeping your handlebar clean
  • Small enough to avoid unwanted attention
  • Dust and water-resistant - IP65 protection
  • Voltage reading between 20V up to 60V
  • First to detect real battery capacity and tracking stats of up to 3 batteries
  • Android and iOS mobile apps for more statistics and configurations
  • Providing flexibility to comply with road e-bike laws worldwide
  • Ability to use the EggRider app as a larger display
  • In-depth charts capability for your rides
  • One button switch between two profiles
    • Throttle yes/no
    • Pedal-assist yes/no
    • Power level
Eggrider Complete Video Guide

Specifications:

  • Size: 75mm x 47mm x 35mm
  • Weight: 31g
  • Cable length: 30cm
  • Handlebar mounting bracket: standard 22.2mm diameter
  • Physical buttons: Power On/Off, Level Up/Down, and popular Road/OffRoad mode switch

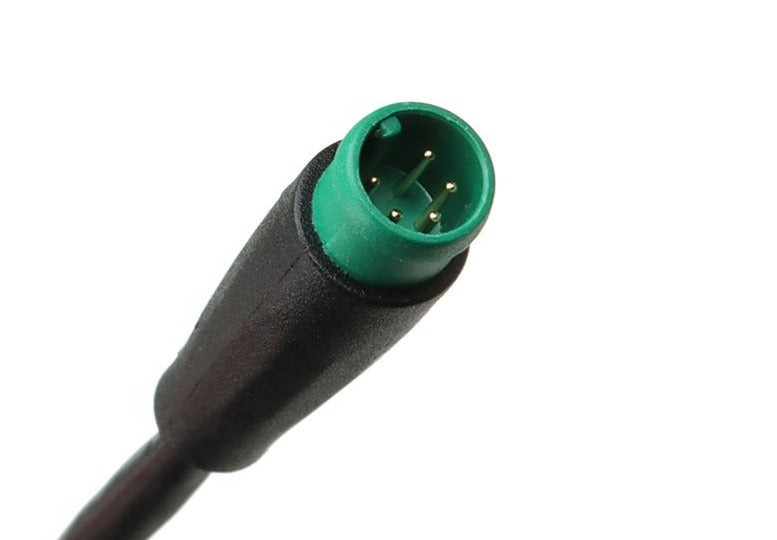

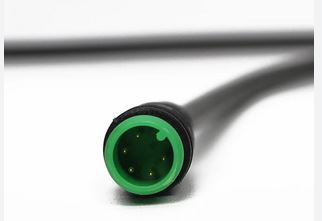

  • Connector: Higo/Julet waterproof 5 pin male/female (see image)
  • Bluetooth low energy (BLE)
  • Screw Hex bolt: M3x10mm
  • Mounting clamp pin: 2.0mm diameter and around 15mm length

EGGRIDER ANDROID APP: ANDROID APP

EGGRIDER APPLE APP: APPLE APP

USER MANUAL

PROGRAMMING VIDEO: PART



EggRider display compatibility

There are two main things to consider for compatibility:

  • Hardware - voltage, connector and pinout compatibility
  • Software - communication protocol compatibility

Warning

Having the same connector/pinout or bike model doesn't guarantee a compatibility.

Attention

EggRider is not compatible with CAN bus systems.

Do not make a connection if connectors are not the same type. Do not use unauthorized adapters such as female to female and male to male adapters because most likely they will burn the display and controller.

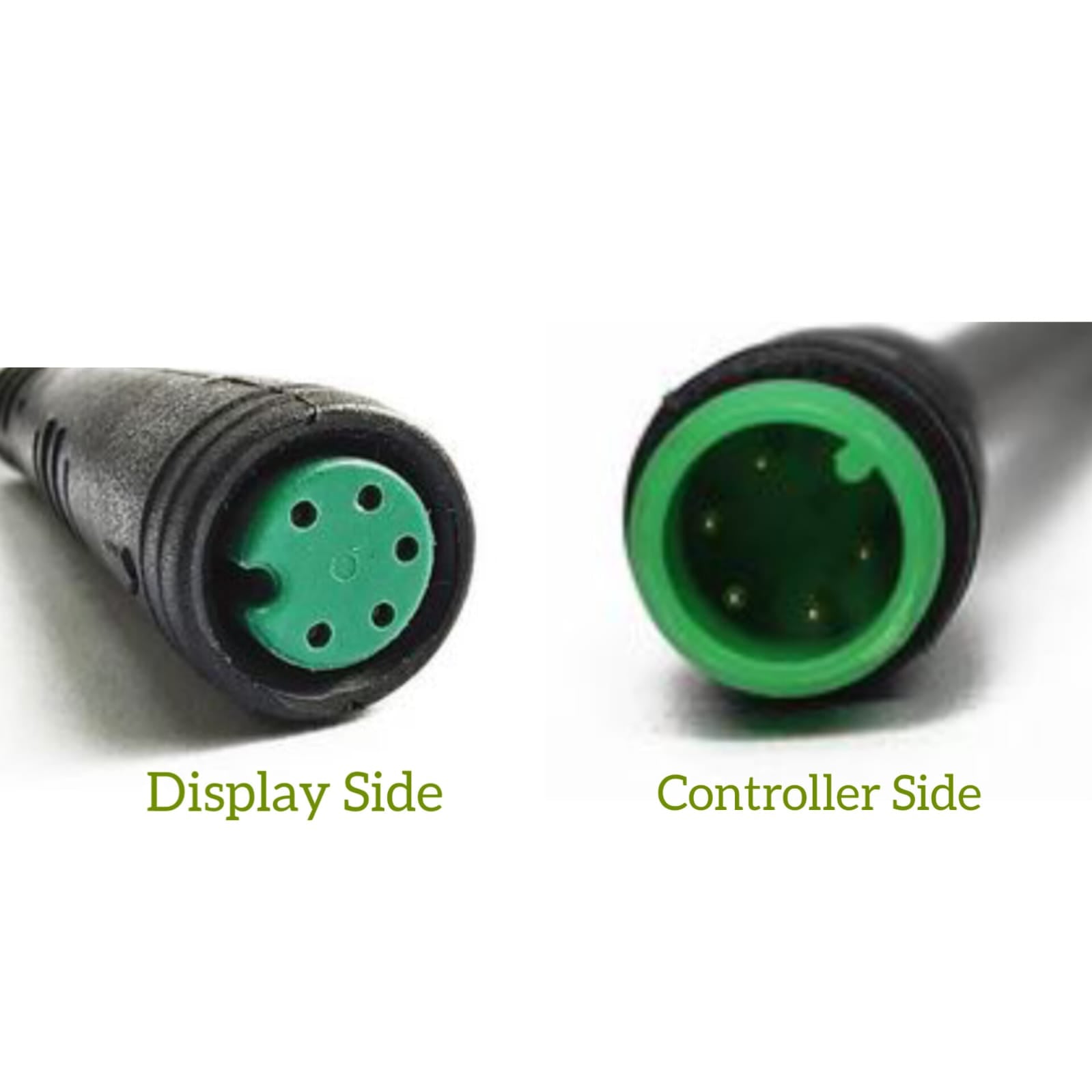

Wrong adapters

How to find out controller brand?

Attention

It is important to identify your controller brand, do not confuse this with the motor brand.

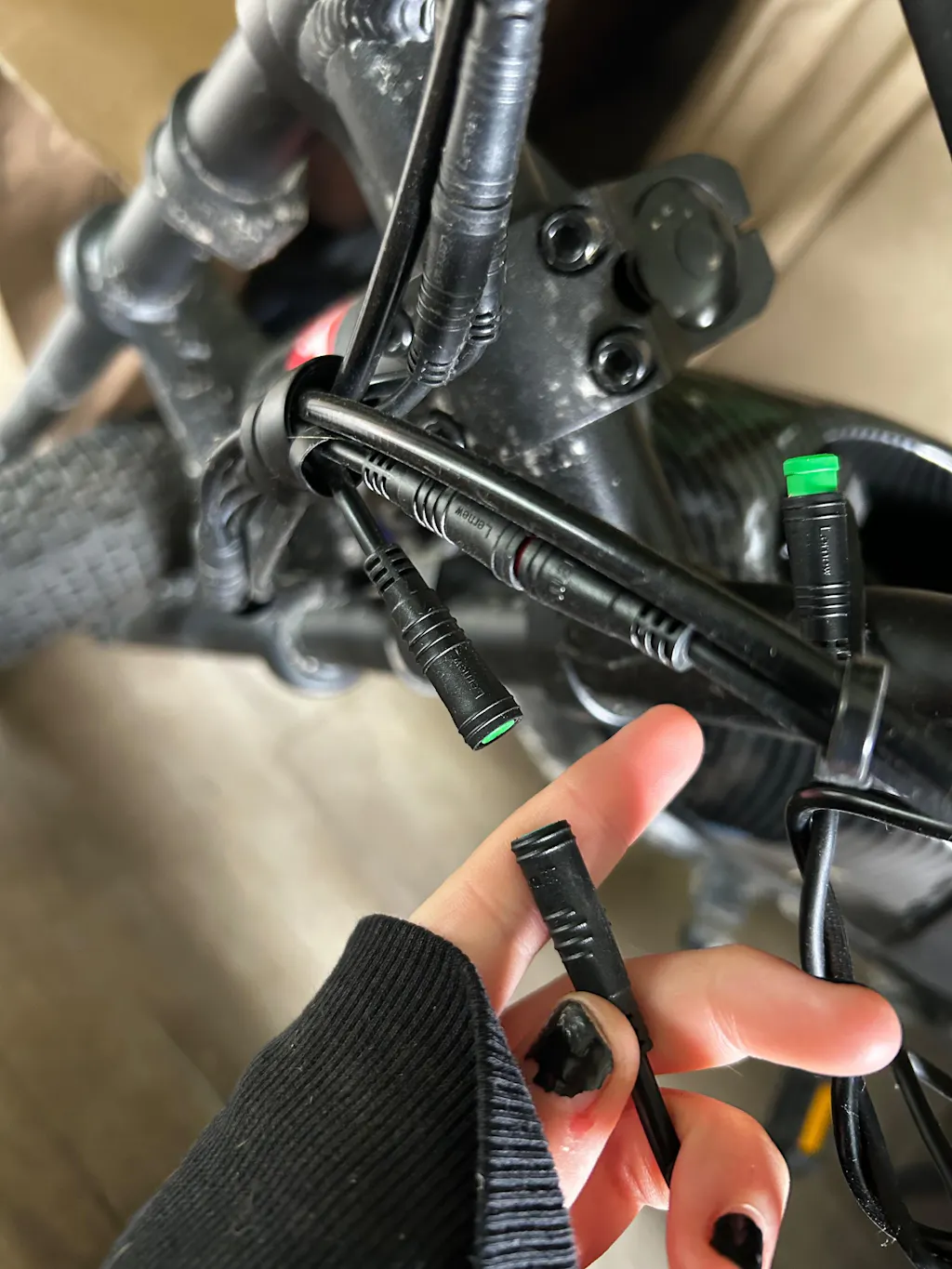

You can find the controller by following the display cable.

If you have a hub wheel motor, most probably your controller is Kunteng or Lishui.

The hub motor ebikes mostly have the controller in an aluminum box attached to the frame or integrated in the battery mount or the bike frame.

If you identified your controller as Kunteng(KT) or Lishui(LSW), keep in mind that there are more types of connectors, not only julet/higo 5 pin waterproof.

Compatibility list

Bafang hub motors

Bafang hub motors are not neccesarly compatible. It is important to understand what controller brand you have. Please read all this page carefully.

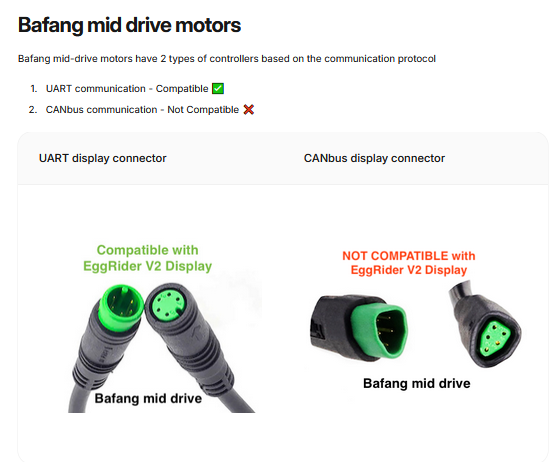

Bafang mid drive motors

Bafang mid-drive motors have 2 types of controllers based on the communication protocol

  1. UART communication - Compatible ✅
  2. CANbus communication - Not Compatible ❌

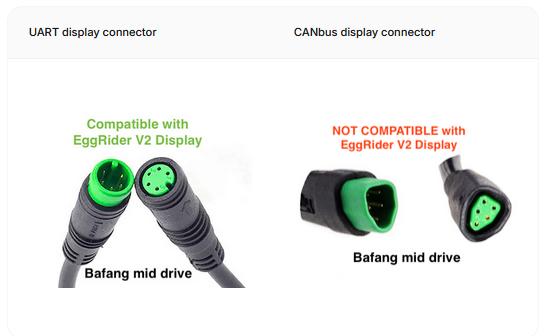

UART display connector CANbus display connector
Higo bafang UART connector 5pin circular Higo bafang CANbus connector 5pin square

Bafang mid drive ebikes have the controller integrated into the motor and the type is written on the case.
EggRider is compatible with Bafang mid drive systems:

  • Bafang BBS01 250W 350W 500W 750W
  • Bafang BBS02 250W 350W 500W 750W
  • Bafang BBS03 BBSHD LUNA 750W 1000W 1500W 2500W Ludacris
  • Bafang Ultra M620
  • Bafang Ultra 1000W
  • Bafang MM G510 1000
  • Bafang M600
  • Bafang Max
  • Bafang MM G320
  • Bafang MM G330 250
  • Bafang MM G340
  • Bafang M300
  • Bafang M400

Mate bikes

Compatible with all Mate X versions. Please select Mate X EggRider version.

Attention

Mate classic bikes are not compatible with EggRider display.

Bike compatibility list:

  • MATE X 250
  • MATE X 250+
  • MATE X 750S
  • MATE City 250

Controllers supported:

  • Lishui LSW1545-5-2M
  • Lishui LSW856-66M
  • Lishui LSW856-66-1M

Attention

EggRider is not compatible with the following Mate X Controllers:

  • YCSH-C

Motors supported:

  • Bafang RM G060.750.DC 48V 750W SWX02
  • Shengyi DGW25 SY25N4820TA 48V 250W
  • Shengyi DGW25 SY254820SJ 48V 500W
  • JiaBo CZJB JB-104C2 24V-60V 750W

Replaces the following displays:

  • Key-Disp KD51C-D
  • Bafang DPC-14 / 850C 3.2-inch MATE-customized TFT LCD color display
  • Ukriver UKC1 / UK-CT-18 / UKCT-18 3.5-inch MATE-customized TFT LCD color display

RadPower bikes

Attention

EggRider is not compatible with RadPower bikes with upgraded Kunteng (KT) controllers.

Rad

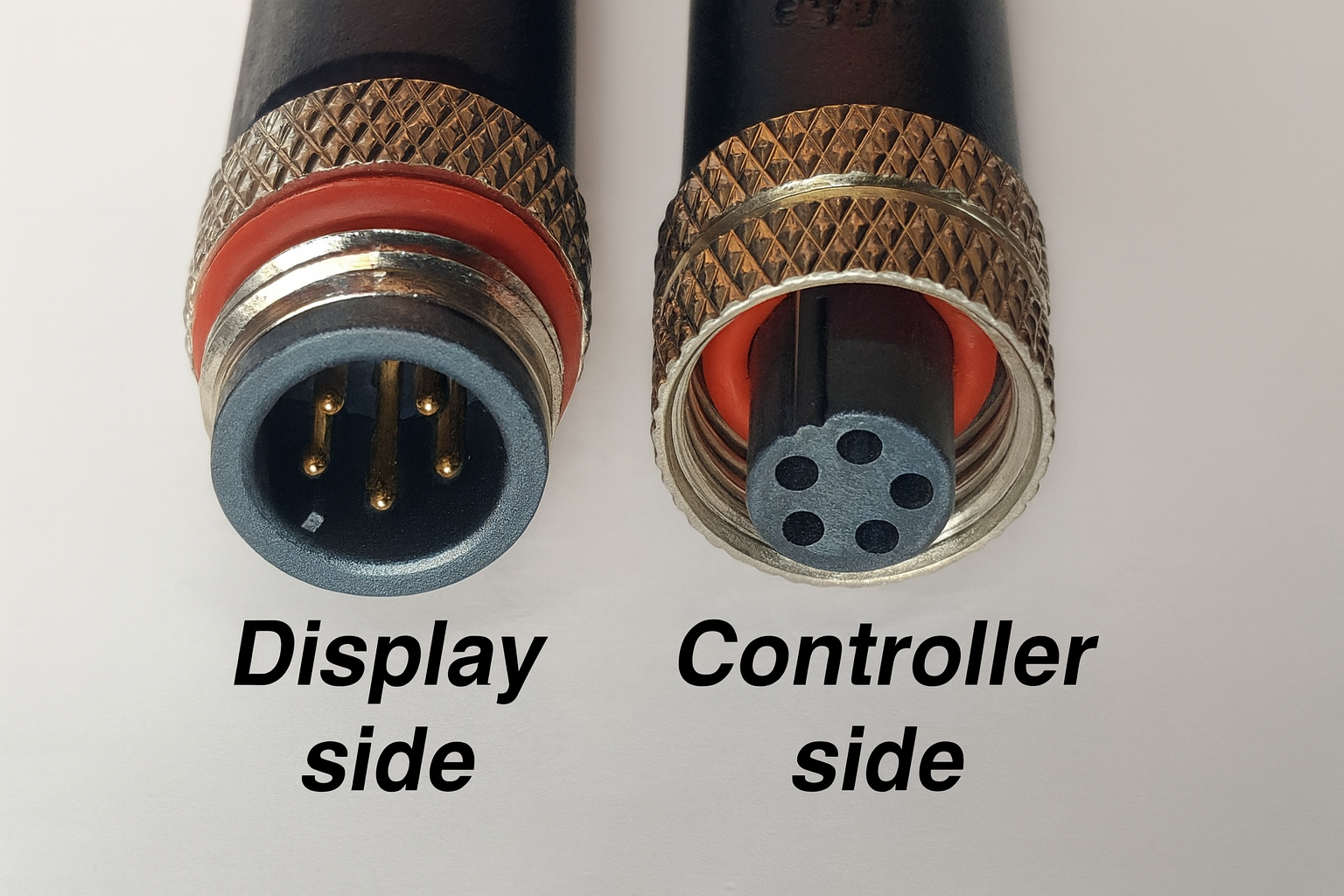

Compatible RadPower bikes feature a 5-pin screw connector for the display as shown below and use a Lishui controller;

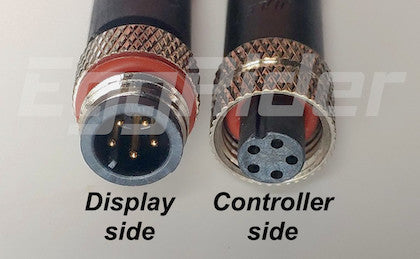

RadPower bikes 5 pin screw display connector

EggRider Rad compatible with the following models:

  • RadExpand 5
  • RadCity 1/2/3/4
  • RadMini 1/2/3/4
  • RadMission 1
  • RadRhino 1/5
  • RadRover 1/2/3/4/5
  • RadRunner 1/1 Plus/2
  • RadWagon 1/2/3/4

Radv2

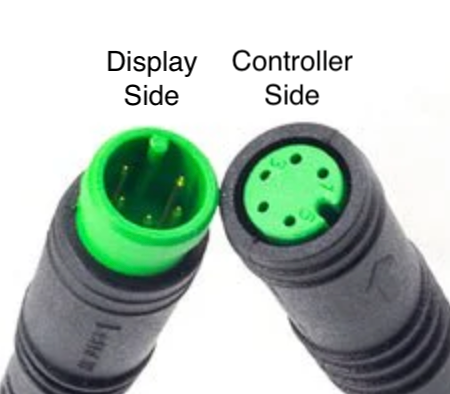

Compatible RadPower bikes feature 5-pin julet connector for display as shown below and use ASI controller:

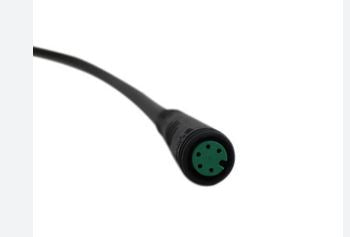

Radv2 RadPower display connector

EggRider Radv2 is compatible with the following models:

  • RadCity 5 Plus
  • RadRhino 6 Plus
  • RadRover 6 Plus
  • RadRunner 3 Plus
  • RadTrike 1

Urban Drivestyle bikes

Compatible Urban Drivestyle bikes:

  • Unimoke V4
  • Unimoke V5
  • Unimoke V6

Kunteng (KT) Controller

Attention

RadPower Bikes with a upgraded Kunteng controller are not compatible with EggRider display.

Other compatible bikes:

  • Aostirmotor S07-B
  • Voltbike Yukon 750 Limited
  • Mycle Cargo Electric Bike
  • Ride 1UP
