72V 30Ah Lithium-Ion Triangle Battery Pack 80A BMS
Couldn't load pickup availability
Pickup available at Shop location
Usually ready in 24 hoursPairs well with
Product Description
Power your high-performance e-bike build with this 72V 30Ah lithium-ion triangle battery pack, built with 21700 lithium-ion cells for big range and strong sustained power. Delivering roughly 2,160Wh of capacity, this pack is made for 72V hub motor conversion kits and high-power builds that need serious range.

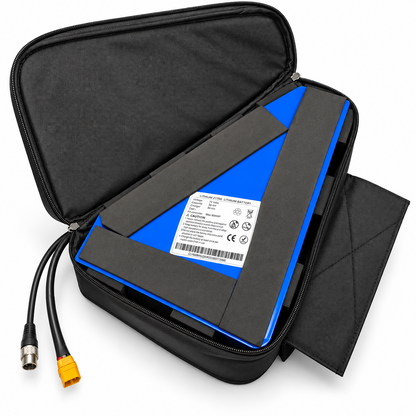

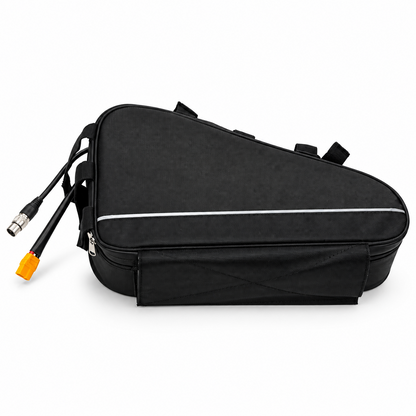

The triangle shape fits inside the main frame triangle of most e-bikes, keeping the weight low and centered. The pack ships inside a padded, zippered frame bag with Velcro mounting straps, foam protection, and a reflective safety stripe. It's compatible with controllers up to 80A.
Battery Dimensions
Plug Type: XT-90 discharge connector, with a separate round charge port
Full Specifications
| Nominal Voltage | 72V |
| Nominal Capacity | 30Ah |
| Watt Hours | ≈ 2,160Wh |
| Cell Type | 21700 Lithium-ion |
| Full Charge Voltage | 84V |
| Compatible Controller | Up to 80A max |
| BMS Protection | Over-Charge, Over-Discharge, Over-Current, Short Circuit |
| Discharge Connector | XT-90 |
| Housing | Triangle frame bag with Velcro straps and foam padding |
| Certifications | CE, RoHS |
Safety & Handling
- Use only an 84V Li-ion CC/CV charger
- Never connect the positive and negative terminals directly
- Keep away from fire, high heat, and direct sun
- Do not place in water, acid, alkaline, or salt liquid, or allow it to get wet
- Do not charge or store in freezing temperatures
- Stop using the battery if there are any signs of damage
Battery Care & Charging
Store the battery in a clean, dry, ventilated, dark environment. If unused for an extended period, store it at 60–90% charge and top it up at least once a month. Avoid running the battery empty, and don't store it at 0% for long periods, as this can permanently damage the cells.
During charging, the charger's indicator light shows red; once fully charged, it turns green.
Warranty
- 12-month warranty
- Product quality guaranteed by PAIC insurance
