GMX Display 3.5"
Pairs well with
Product Description
Experience the next generation of e-bike control and performance monitoring with the D10 GMX Display by Golden Motor.
Built with precision and style, the D10 is designed to provide crystal-clear ride data and intuitive control for all your Golden Motor systems.
Key Features
-
3.5" Full-Color TFT Display (320×480 pixels) – bright, clear visuals in any lighting.
-
Slim & Modern Design – elegant profile with a non-screw assembling craft for a clean handlebar look.
-

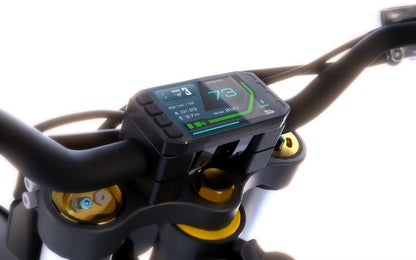

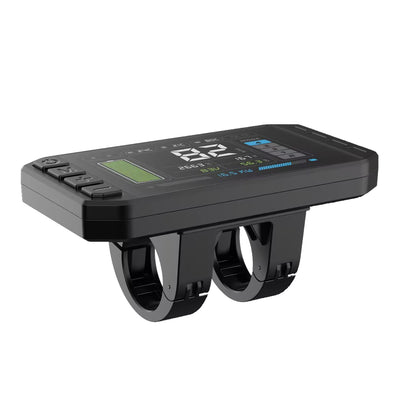

Multi-Angle Mounting – compatible with Ø22.2 / 25.4 / 31.8 mm handlebars.
-
Tempered Glass Screen – durable and scratch-resistant front panel.
-
Full-Screen Interface – smooth and intuitive data layout.
-
Optional Bluetooth (BLE) Module – connect to your mobile app for advanced ride monitoring.
-
IPX5 Waterproof Rating – reliable performance in all weather conditions.

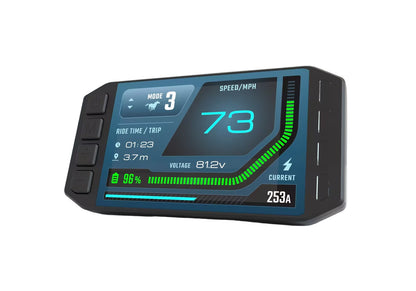

Display Information
Real-time data at a glance:
-
PAS (Pedal Assist) Level
-
Speed / Trip / Odometer
-
Battery Voltage & Current
-
Light Status Indicator
-
Ride Time & Distance
-
Error Warnings / Walk Assist
Specifications
| Category | Details |
|---|---|
| Display Type | 3.5” TFT |
| Resolution | 320 × 480 pixels |
| Voltage Compatibility | DC 24 V / 36 V / 48 V |
| Current Consumption | 30 mA @ 36 V |
| Material | ABS / PA Housing |
| Weight | 100 g |
| Operating Temperature | −20 °C ~ 60 °C |
| Communication | UART / CAN |
| Waterproof Rating | IPX5 |
| Certifications | RoHS / CE |
