Golden Motor Magic Pie Edge 500W/750W Hub Motor E-Bike Conversion Kit

The Magic Pie Edge hub motor kit is the street-friendly member of the Magic Pie family. It has the same all-in-one design, with the Vector sinewave controller built inside the motor, and comes in two versions: 500W and 750W. Each version uses its own motor, and both stay inside the 750W limit most US states use for e-bikes. Available front or rear (freewheel or cassette) in 12" to 700c wheel sizes.

Approximate top speed: 20 to 28 mph (32 to 45 km/h). The 500W version reaches about 20-25 mph and the 750W version up to about 28 mph, depending on battery voltage. Speeds are approximate on flat ground with a 26" wheel and depend on wheel size, rider weight and terrain. You can set a lower limit with the USB cable or Bluetooth app.

Designed and supported by Golden Motor, with a 1-year warranty handled directly by our team.

Key Features

• Built-in Vector sinewave controller: no controller box, quiet and smooth power
• Choose 500W or 750W: 22A controller, about 45-50 Nm torque
• Works with 24V to 52V batteries
• Rear cassette option for bikes with 8, 9 or 10-speed cassettes
• Brushless gearless motor: very low maintenance
• Regenerative braking through the included power brake levers
• Programmable by USB cable, Bluetooth app or Smart Display

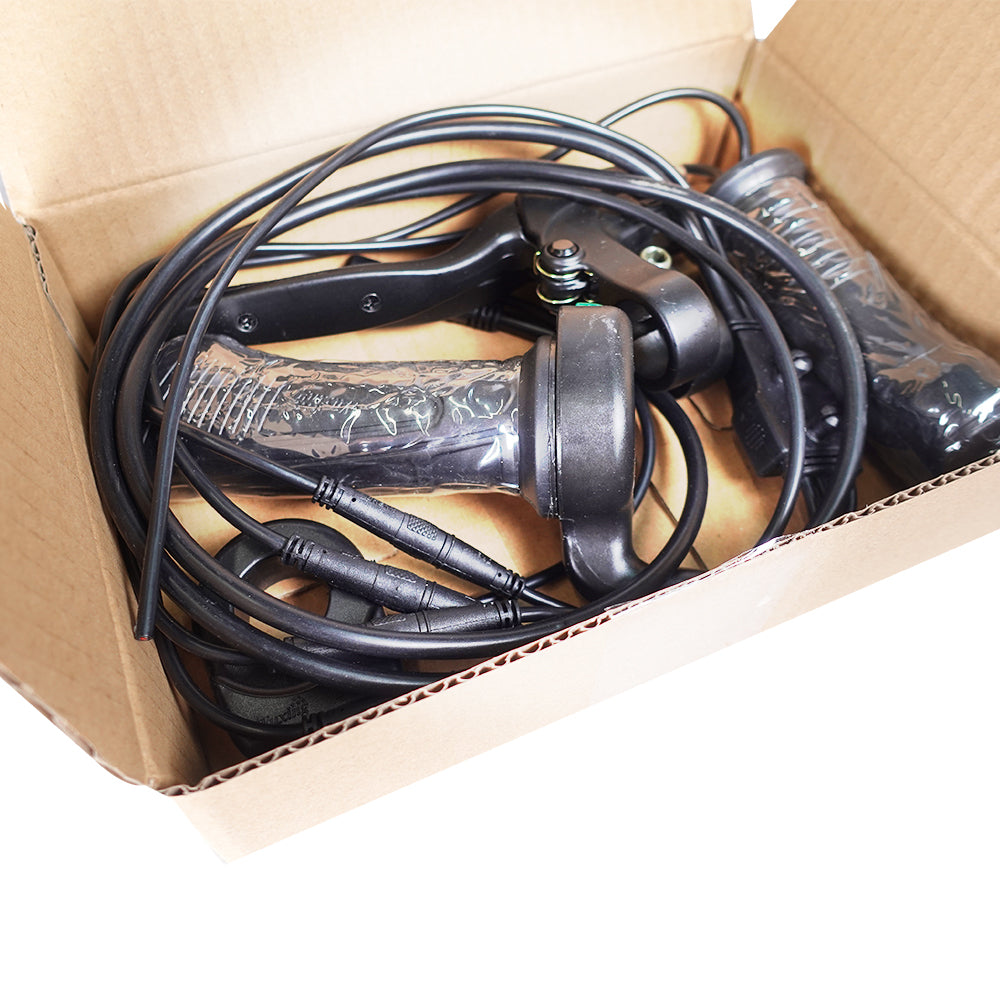

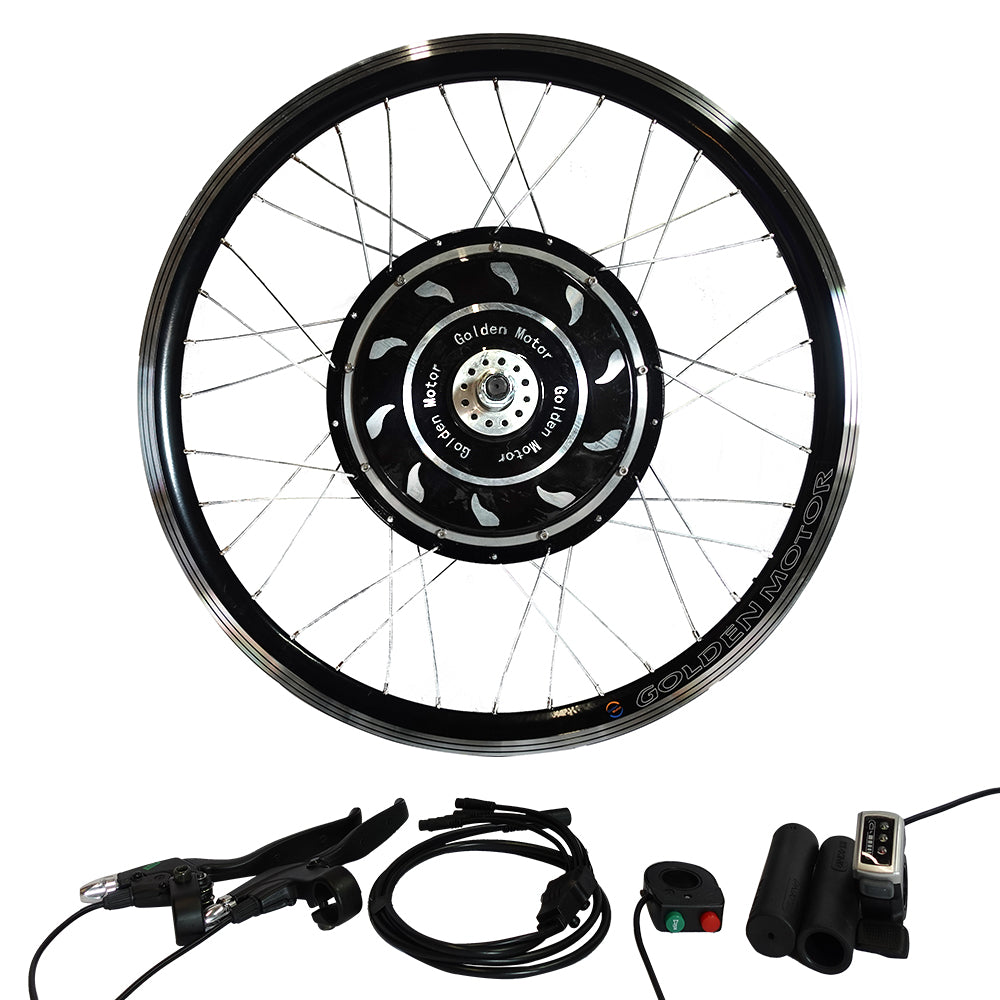

What's in the Box

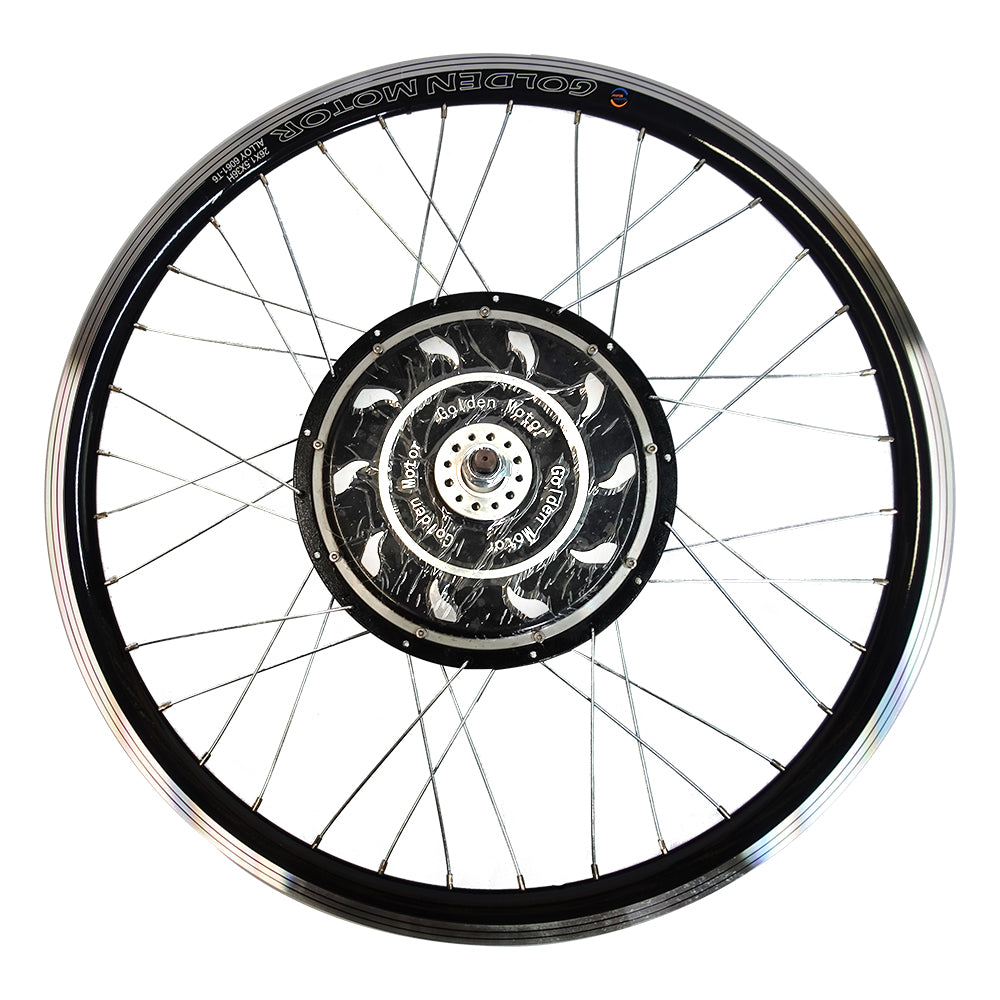

• Magic Pie Edge motorized wheel with built-in controller, laced into a double-wall aluminum rim

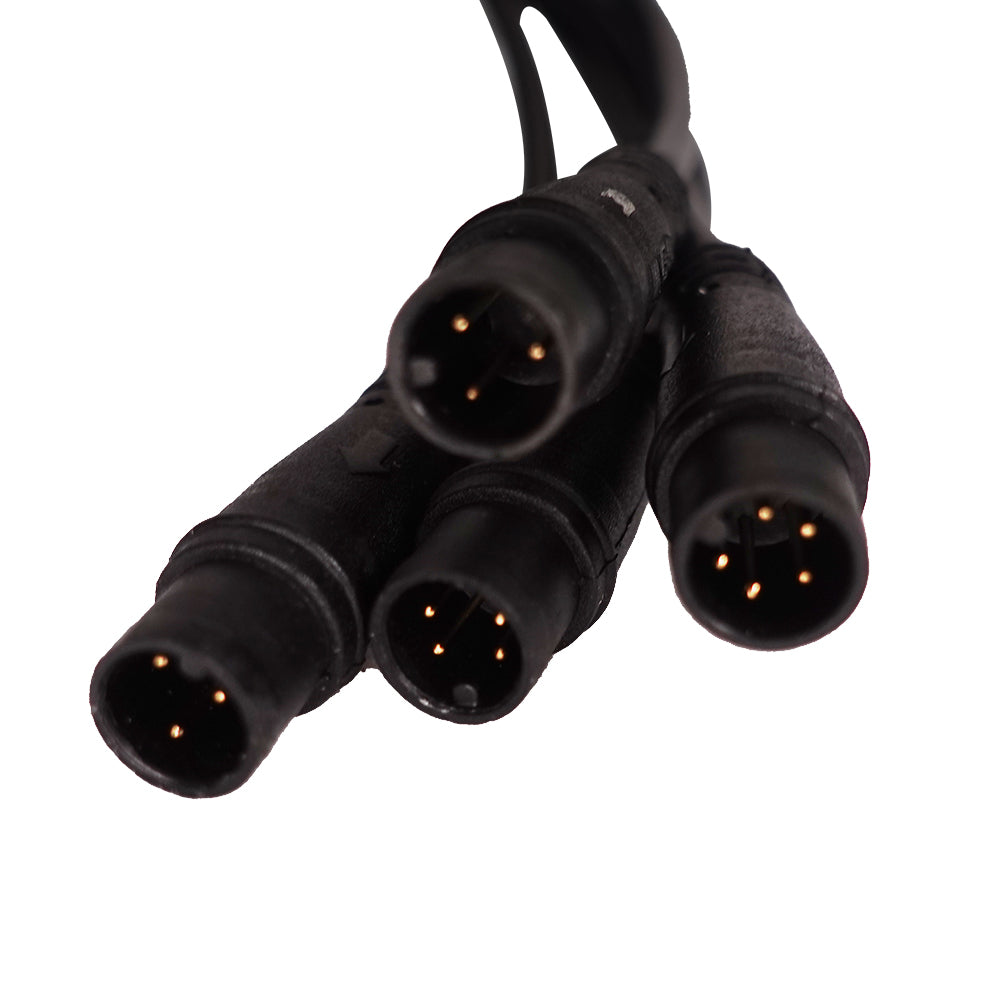

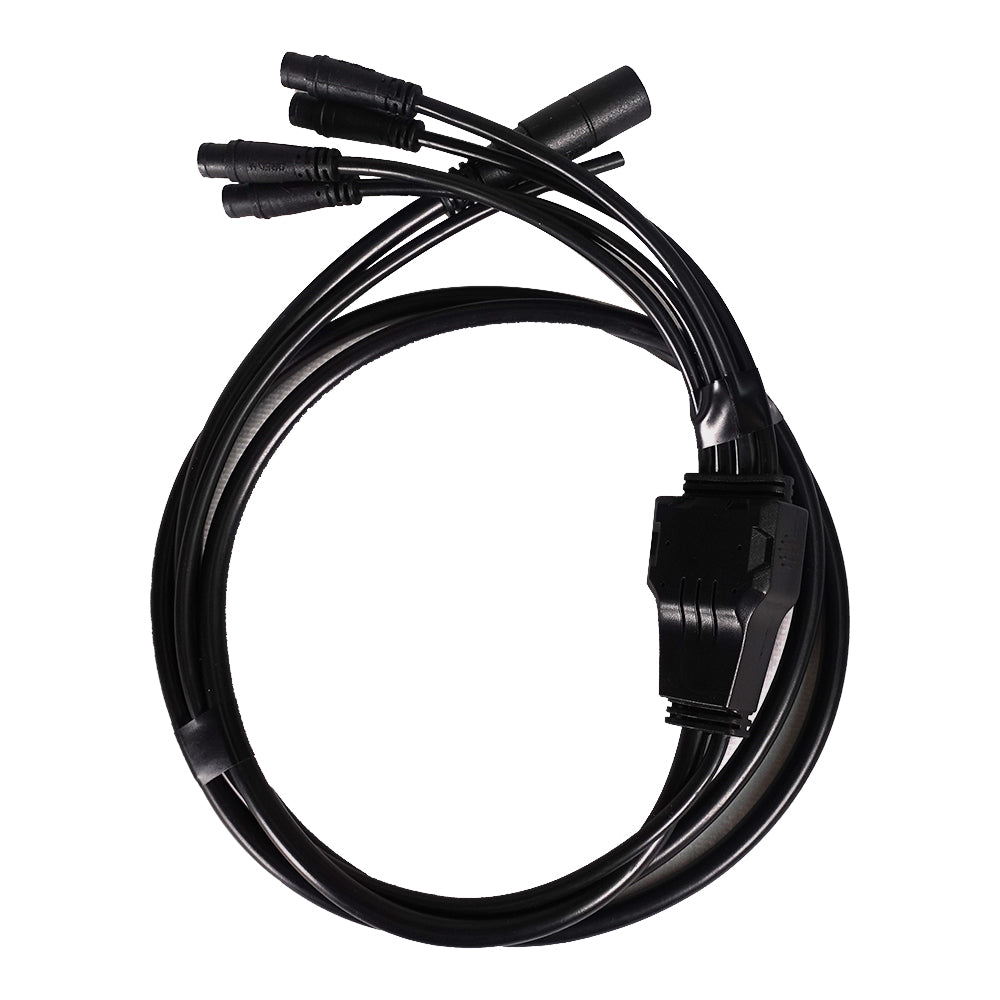

• Waterproof plug-and-play wiring harness

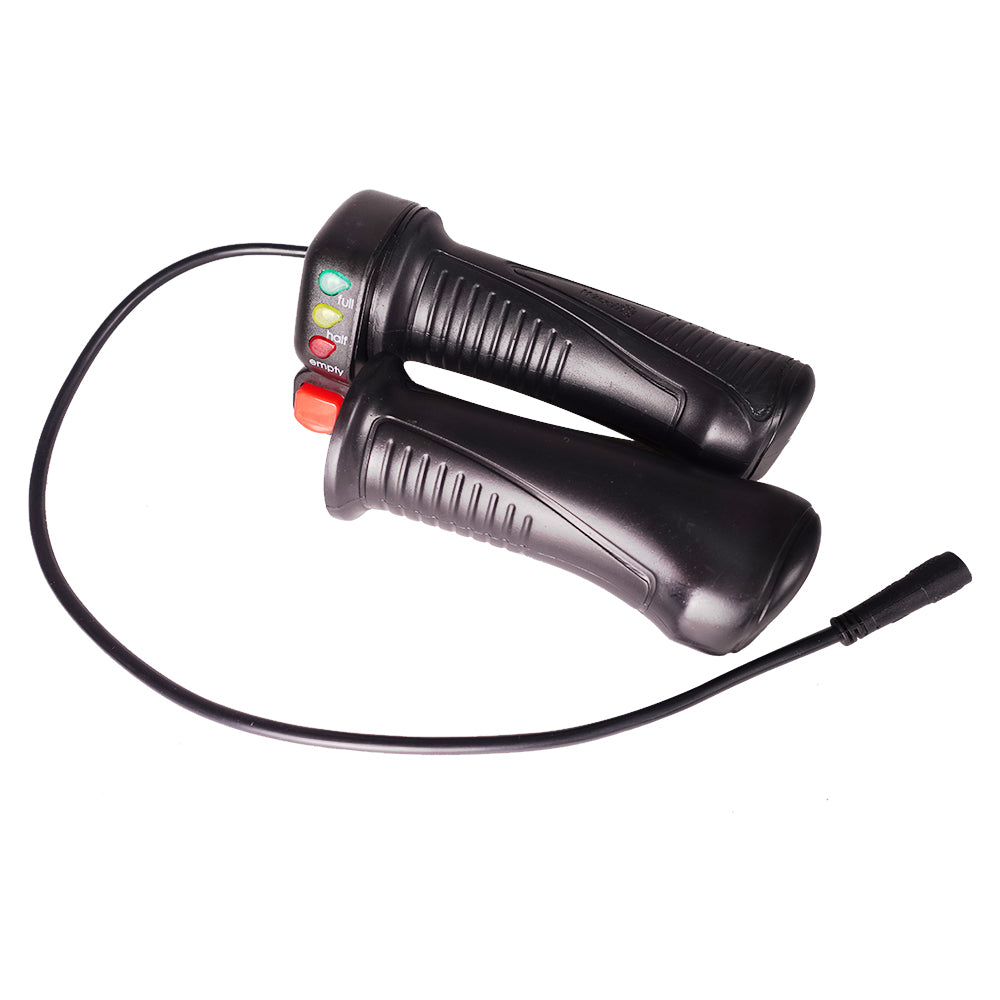

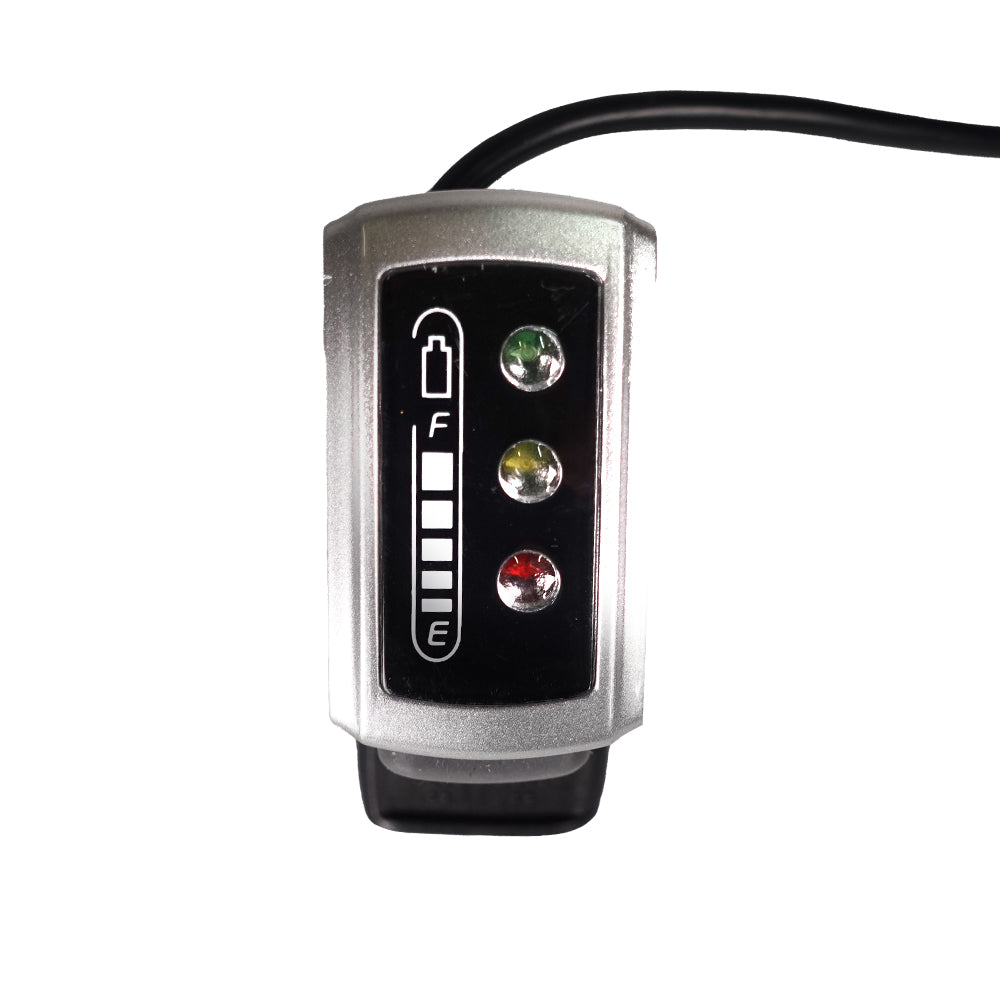

• Thumb or twist throttle

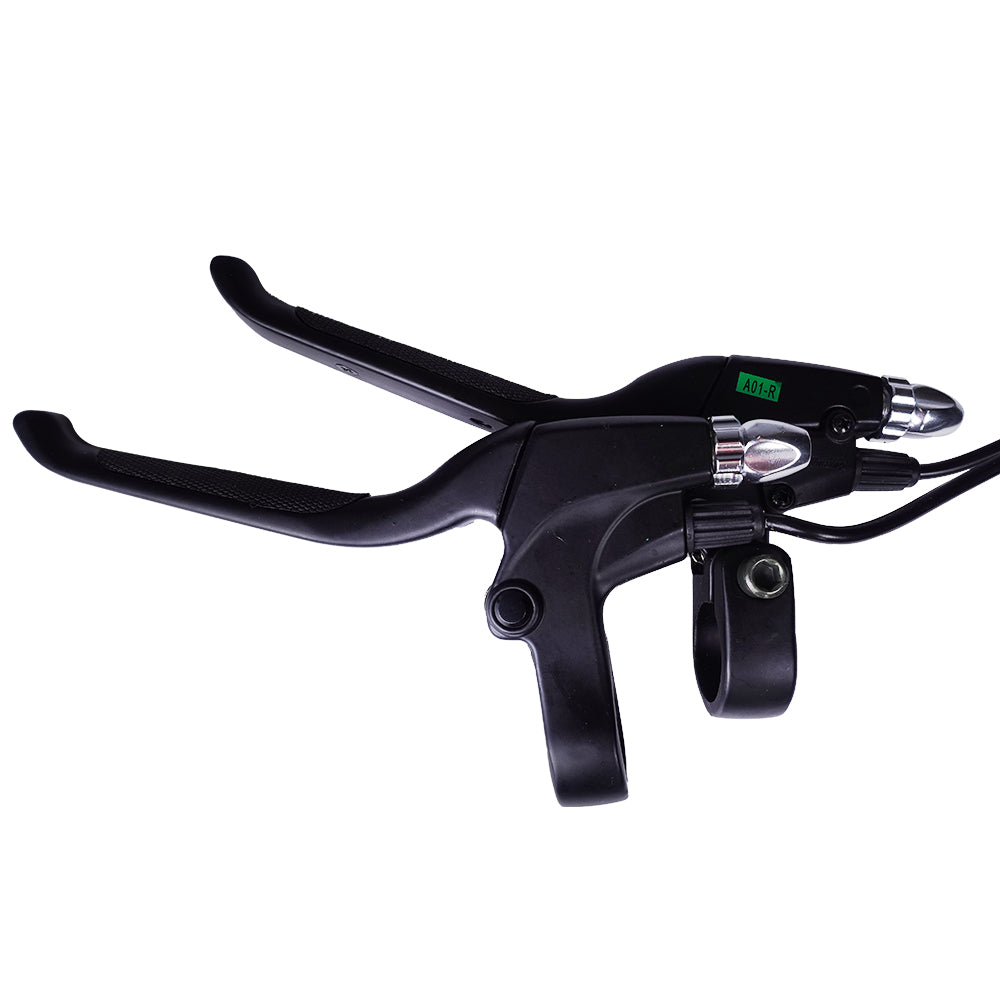

• Power brake levers for regenerative braking

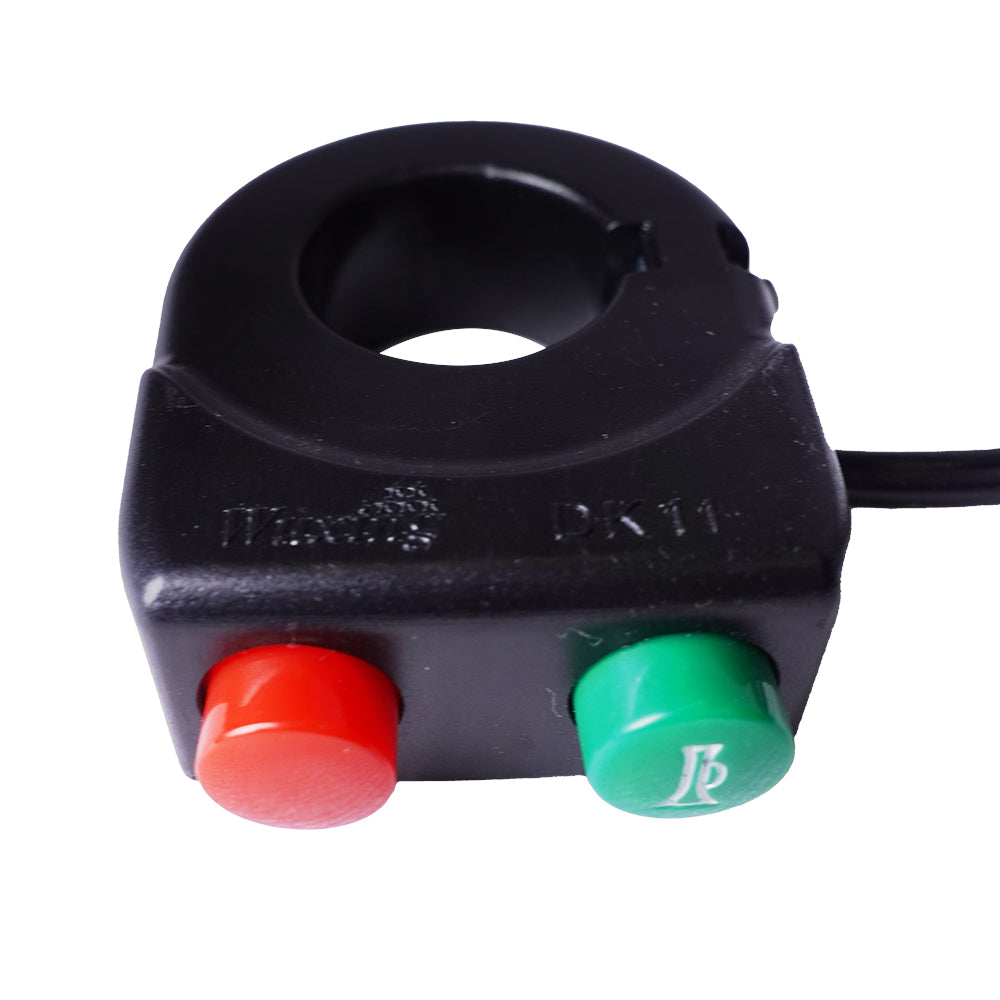

• Two-button switch for cruise control and optional horn or light

Battery and charger are not included. Any 24V, 36V, 48V or 52V battery works. As a guide, a 10Ah battery gives about 25 miles and a 20Ah about 50 miles. Shop e-bike batteries.

Specifications

• Motor: brushless gearless hub motor
• Controller: built-in Vector sinewave, 22A
• Power: 500W or 750W version
• Voltage: 24V to 52V
• Torque: about 45-50 Nm
• Approximate top speed: 20-28 mph (32-45 km/h)
• Position: front, rear freewheel or rear cassette
• Wheel sizes: 12", 16", 20", 24", 26", 700c (16" uses a cast rim)
• Tire width: regular rim 1" to 2.3", cast rim 1.95" to 2.75"
• Install note: the Edge mounts with the controller on the right (drive) side

Recommended Add-Ons

• Front torque arm: required for front wheels (two recommended). A rear torque arm is recommended for safety.
• Smart Display: shows speed, distance, power and pedal assist level
• Bluetooth device: turn your phone into a display and programmer
• USB programming cable (software download)
• Pedelec (pedal assist) sensor

FAQ

500W or 750W?
500W suits flat to rolling commutes and gives the longest range. 750W adds climbing power and top speed, and matches the most common US e-bike limit. See What Wattage Motor Do I Need?

Freewheel or cassette?
Check your current rear wheel. Threaded cogs mean freewheel. Cogs that slide onto a splined body mean cassette.

Is it street legal?
Both versions are within the 750W limit most US states use for e-bikes. See our e-bike law guide.

Installation and Support

Step-by-step guides: Internal Hub Kit Installation, Wiring and Parts and Hub Kit FAQs. More videos on our YouTube channel.

STEP Files

Edge Front | Edge Rear (8/9/10 Cassette) | Edge Rear (Freewheel)
