Golden Motor Magic Pie 1000W Hub Motor Kit with External Controller

The Magic Pie External 1000W hub motor kit pairs the proven Magic Pie brushless motor with a separate external controller. Keeping the controller outside the wheel makes it easy to reach, replace or upgrade, and keeps heat away from the motor. It's a good fit for custom builds, trikes, and riders who want a serviceable setup. Available as a front or rear wheel, 16" to 700c.

For off-road use only. At 1000W, this kit exceeds the 750W limit most US states set for e-bikes, so it is intended for off-road trails and private land. For a street-legal build, see the Magic Pie Edge (500-750W).

Designed and supported by Golden Motor, with a 1-year warranty handled directly by our team.

Key Features

• External 25A Magic Controller: easy to access, replace or upgrade
• 1000W continuous, up to 1500W, about 55-75 Nm peak torque
• Works with 24V to 52V batteries
• Brushless gearless motor: quiet and very low maintenance
• Regenerative braking through the included power brake levers

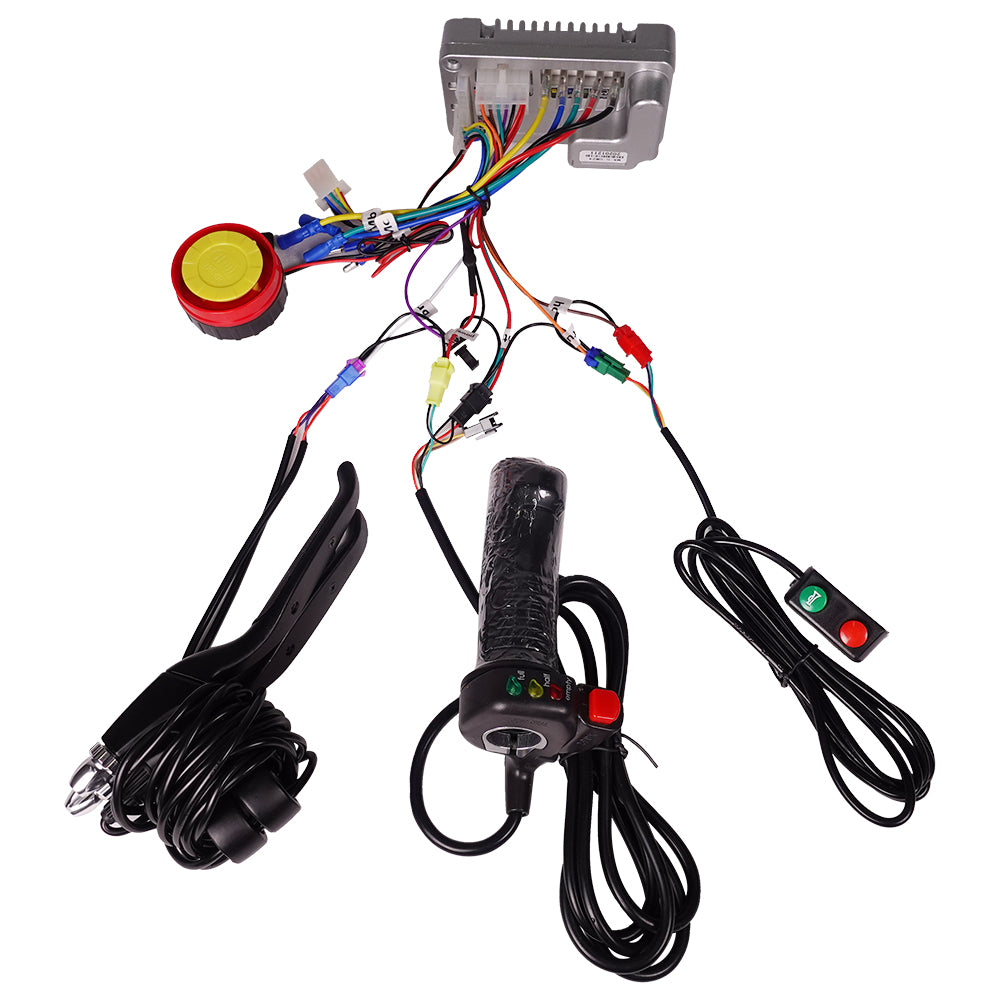

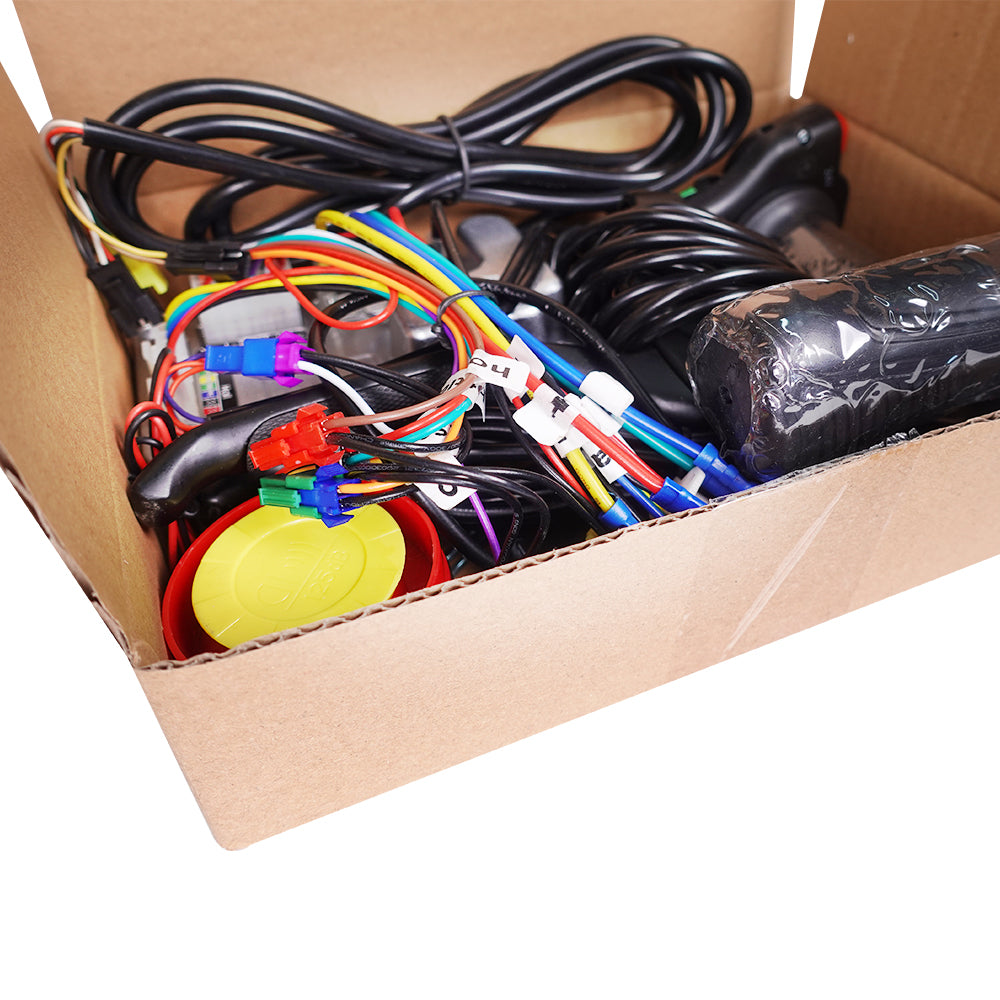

What's in the Box

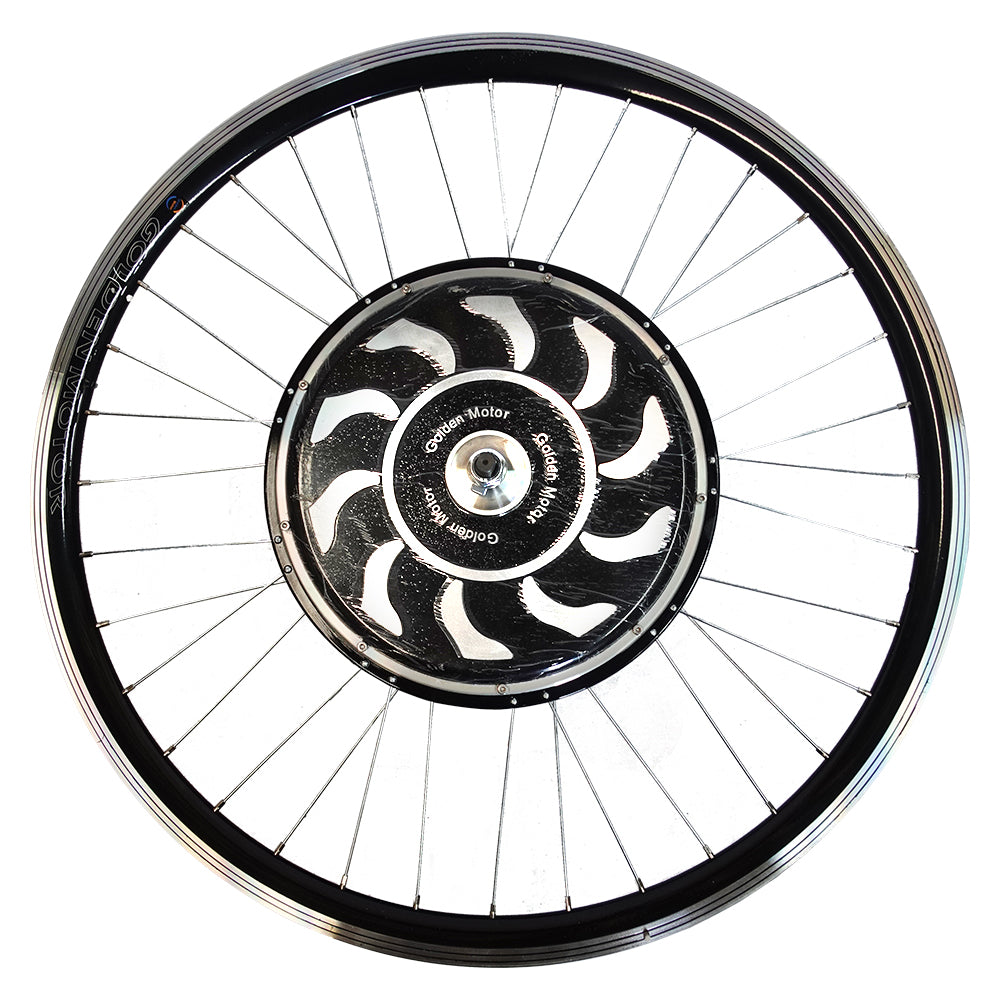

• Magic Pie motorized wheel, laced into a double-wall aluminum rim

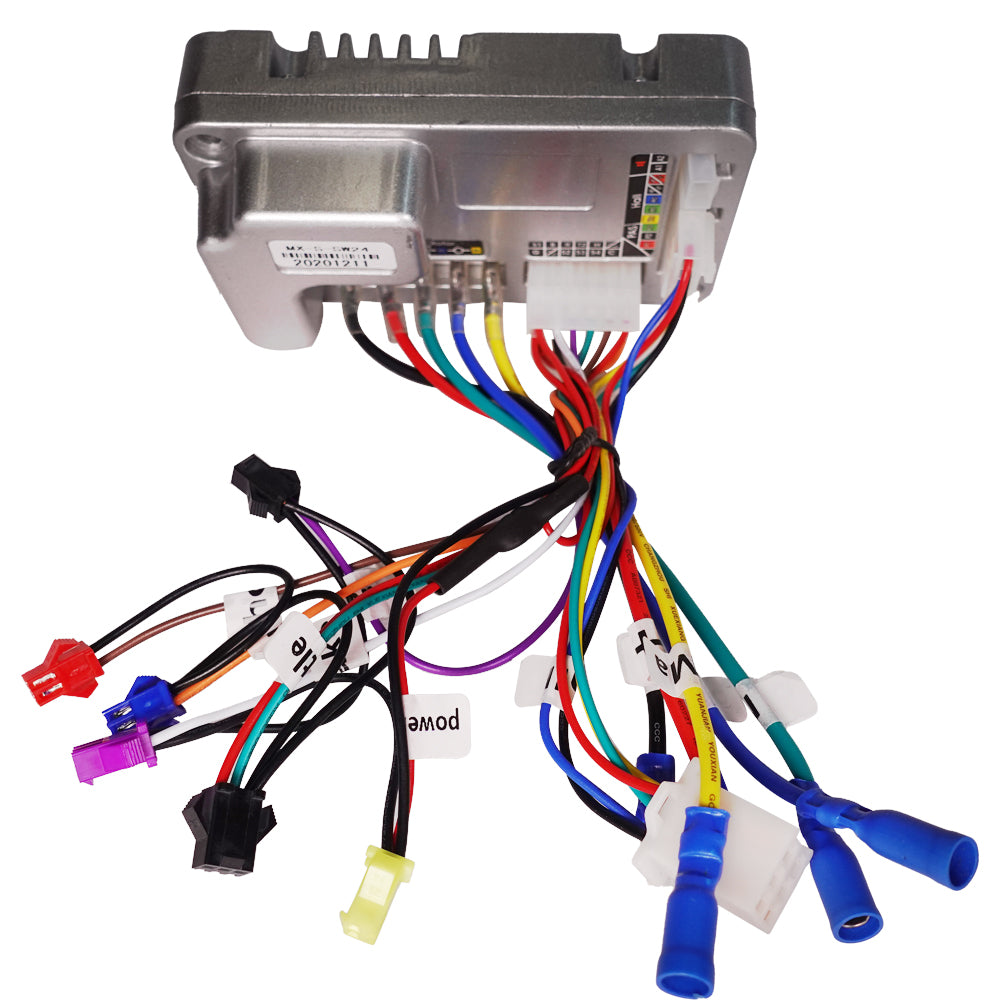

• External controller

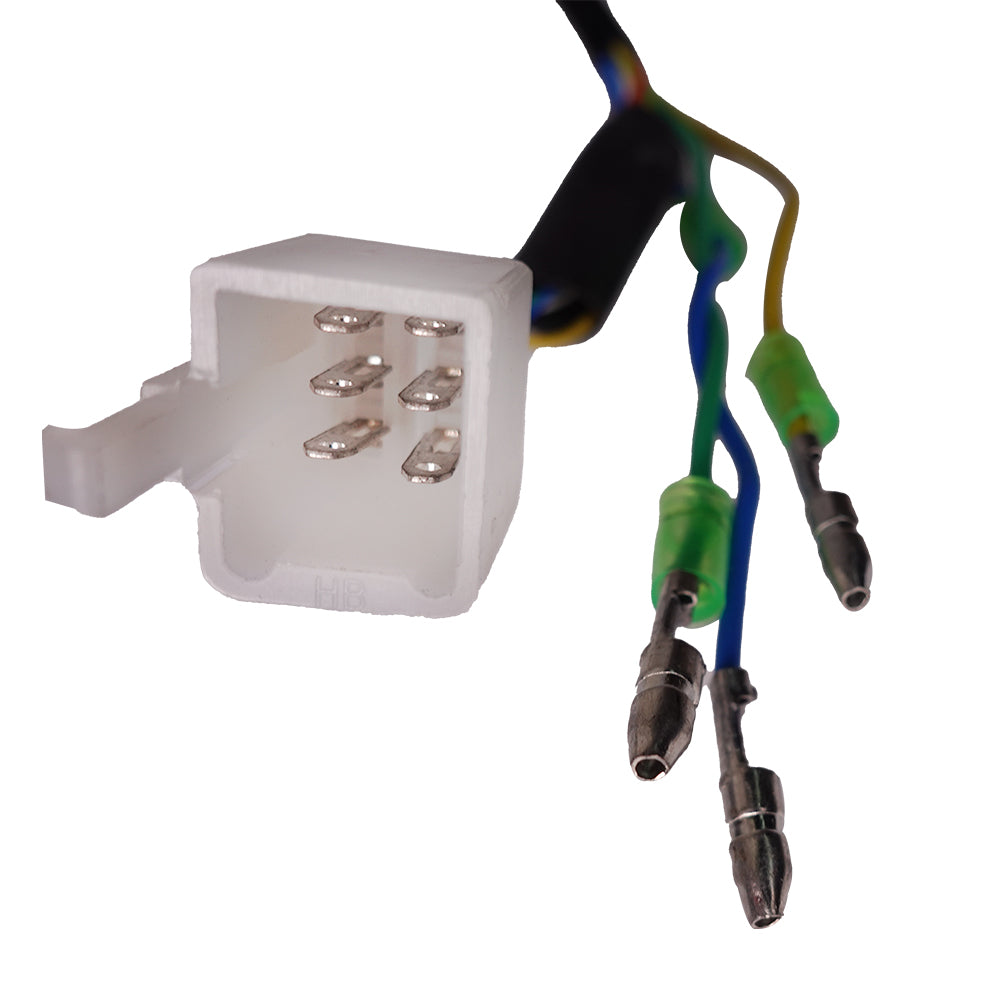

• Waterproof plug-and-play wiring harness

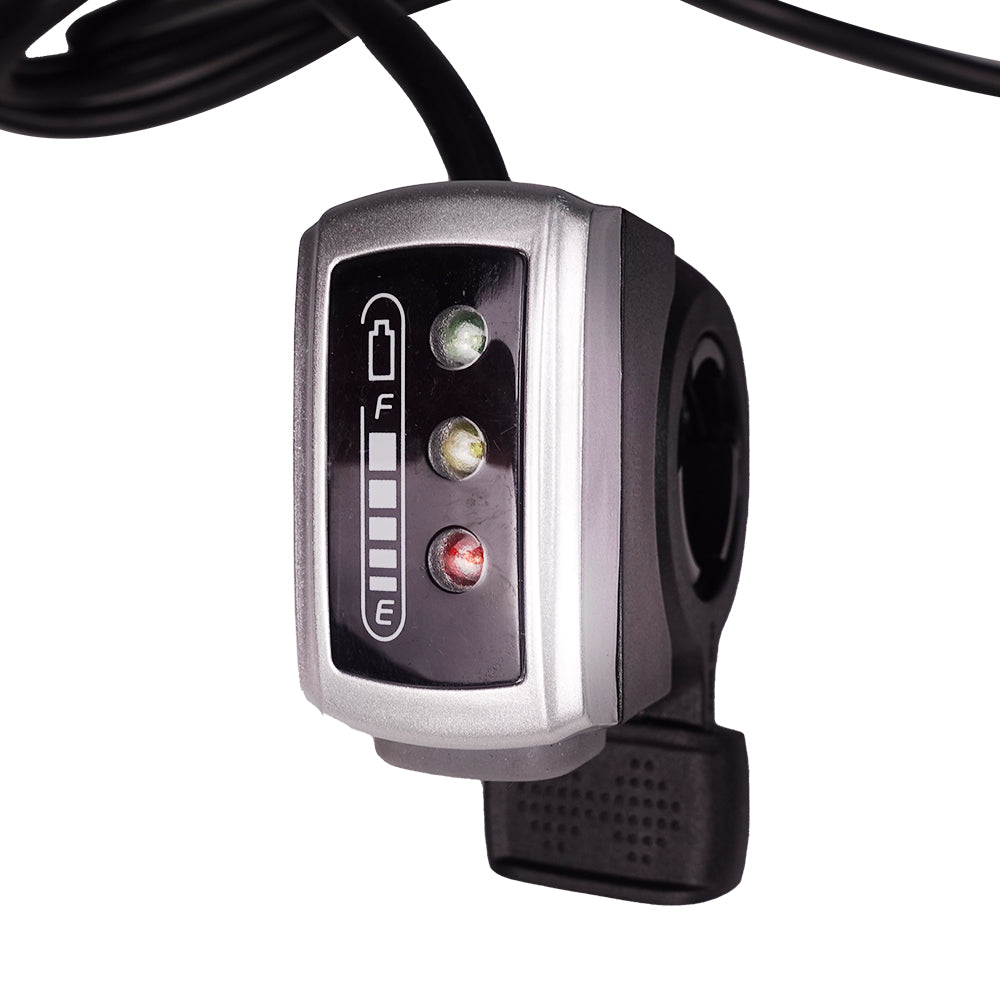

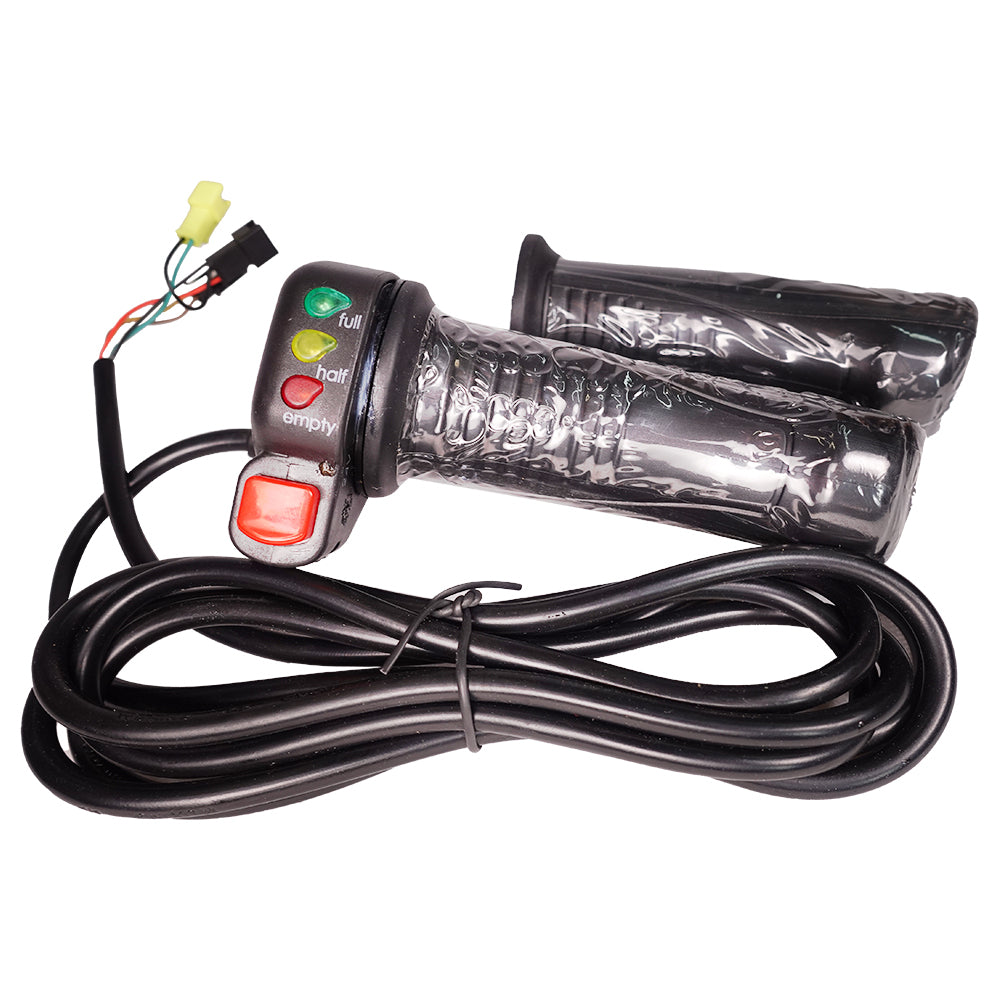

• Thumb or twist throttle

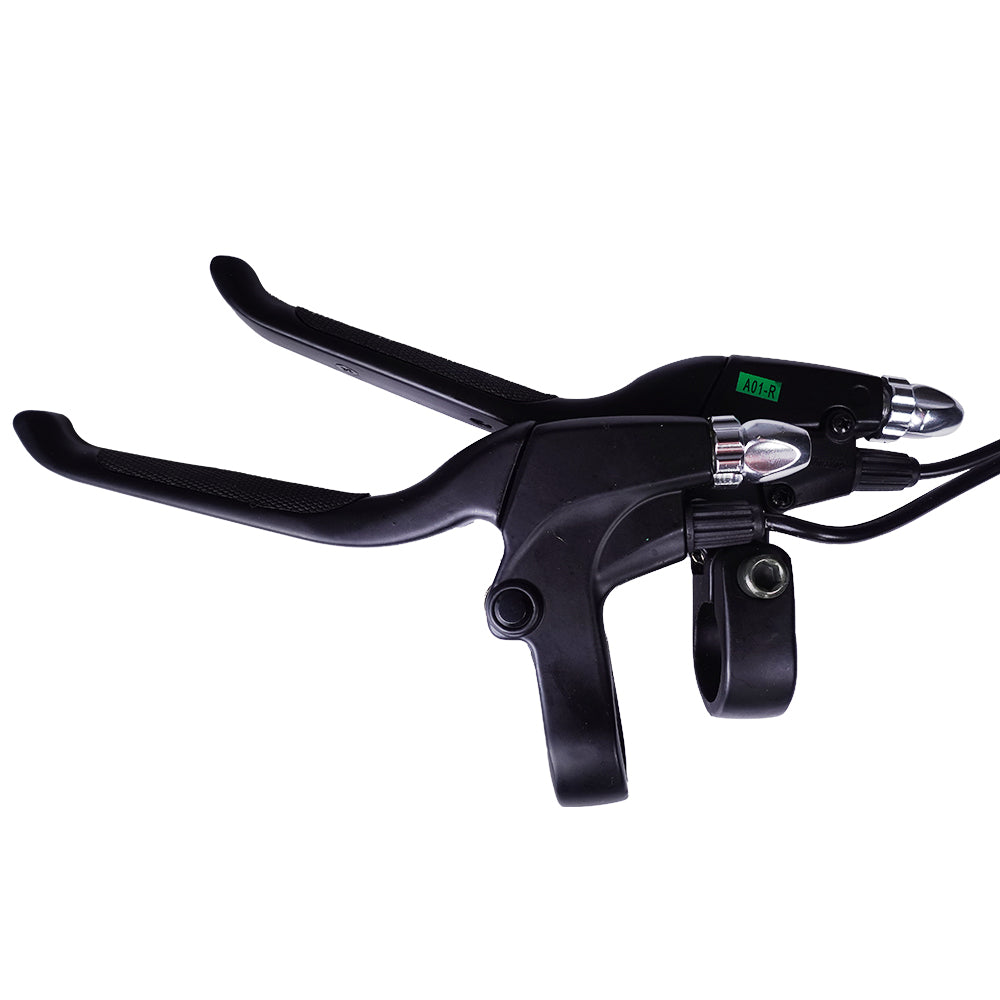

• Power brake levers for regenerative braking

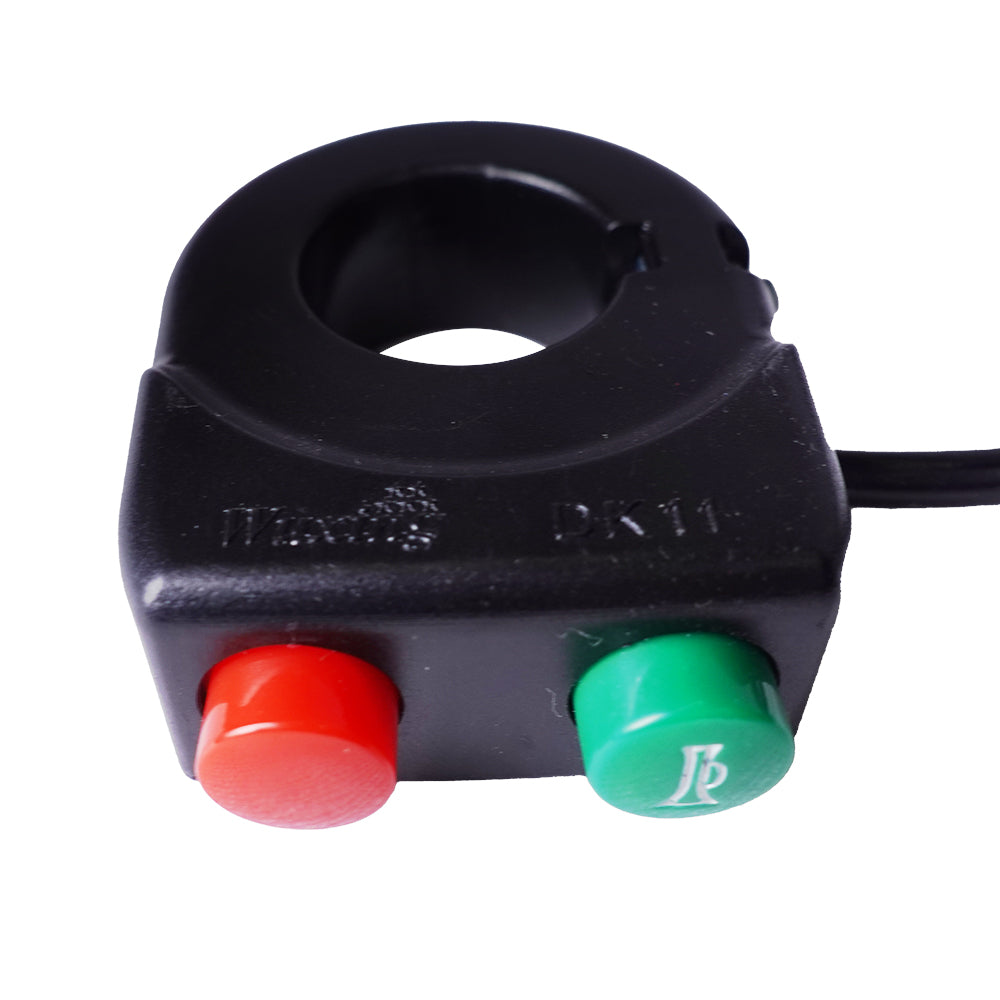

• Two-button switch for cruise control and optional horn or light

Battery and charger are not included. Any 24V, 36V, 48V or 52V battery works. As a guide, a 10Ah battery gives about 25 miles and a 20Ah about 50 miles. Shop e-bike batteries.

Specifications

• Motor: brushless gearless hub motor
• Controller: external, 25A
• Power: 1000W continuous, up to 1500W
• Voltage: 24V to 52V
• Torque: about 55-75 Nm peak
• Position: front or rear
• Wheel sizes: 16", 20", 24", 26", 700c
• Tire width: regular rim 1" to 2.3", cast rim 1.75" to 2.75"

Recommended Add-Ons

• Front torque arm: required for front wheels (two recommended). A rear torque arm is recommended for safety.
• USB programming cable for the external controller (software download)
• Pedelec (pedal assist) sensor

FAQ

External or internal controller?
External controllers are easier to service and upgrade. Internal controllers make a cleaner install. For built-in, see the Magic Pie 5.

Installation and Support

Guides: External Hub Kit Installation, Controller Wiring, Programming and Troubleshooting. More on our YouTube channel.

STEP Files

STEP File: Front | STEP File: Rear
