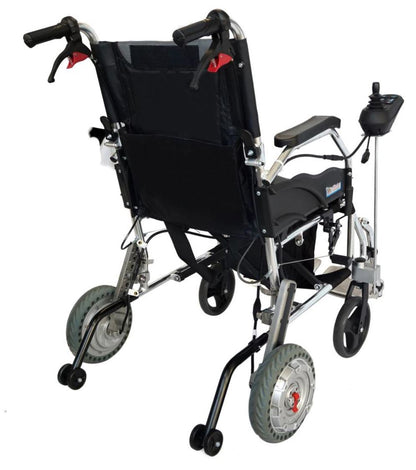

Electric Wheelchair Conversion Kit

Transform any standard manual wheelchair into a fully electric, joystick-controlled wheelchair. Designed for the elderly, disabled, and caregivers seeking independence and mobility freedom — without the cost of buying a brand new electric wheelchair.

Powered by dual 180W brushless gearless hub motors and a smooth sine wave controller, this kit delivers quiet, comfortable, and reliable performance. The ergonomic joystick gives full directional control, speed adjustment, battery monitoring, and horn — all at the rider's fingertips.

Technical Specifications

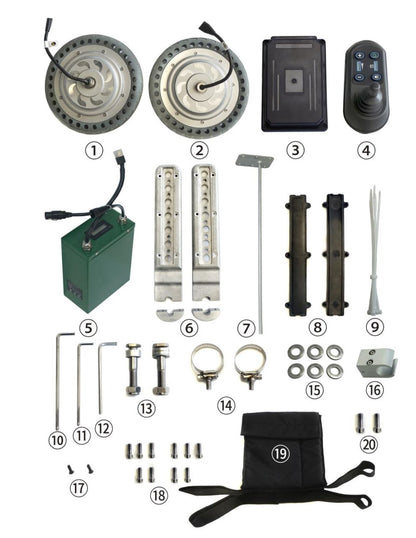

What's in the Box

• Left & Right Motor Wheels
• Sine Wave Controller
• Joystick Panel
• Motor Brackets x2
• Joystick Stand & Fixing Bracket
• Plastic Covers x2
• Battery & Controller Bag
• Full Mounting Hardware (Screws, Hoops, Spacers)
• Allen Wrench Set (3mm, 4mm, 5mm)
• Cable Ties x10

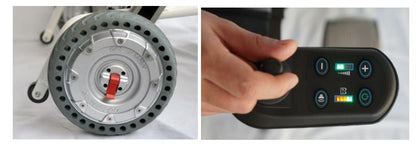

Joystick Panel Controls

• On/Off – Press to power on or off
• Acceleration (+) – Increase speed gear
• Deceleration (–) – Decrease speed gear
• Speed Gear Indicator – LED display of current gear
• Battery Indicator – Real-time battery level display
• Horn – Press to sound, release to stop
• Brake Release – Hold + and – together until beep to release brakes for manual pushing

Key Features

• Dual Brushless Hub Motors – Two independent 180W motors for smooth, powerful, near-silent drive
• Sine Wave Controller – Vibration-free, whisper-quiet operation
• Universal DIY Fit – Fits most standard manual wheelchairs with anti-tip wheels
• LiFePO4 Battery Ready – Compatible with the safest lithium battery chemistry available
• Electromagnetic Brakes – Automatic brake engagement with fault detection for safety
• All Hardware Included – No extra tools or parts needed for installation

Who Is This Kit For?

• Elderly individuals who struggle with manual wheelchair propulsion
• People recovering from injury or illness needing powered assistance
• Caregivers looking to reduce physical strain of pushing a wheelchair
• Anyone who wants to convert their existing wheelchair affordably

Important Notes

• Wheelchair must have a minimum frame load capacity of 120 kg
• Anti-tip wheels are required — do not install on wheelchairs without them
• Maximum slope angle is 9° — always drive forwards on slopes
• Do not use while charging
• Tighten all screws after first week of use and check monthly
