Magic Pie Edge (VECTOR) 700c or 29er Rear Conversion Kit (6-7 Freewheel) (Demo)
Sale price$319.99Regular price
$399.99
Out of stock
Shipping calculated at checkout.
Pairs well with
Product Description
Refurbished unit (replaced new controller)
The Magic Pie Edge With Sine Wave Bluetooth Controller and Bluetooth for Android or iOS.
The Fifth generation of Magic Pie with Vector Sinewave Controller, updated wire harness and controls and now Bluetooth!
The proven power and durability of the Magic Pie Motor now improved with an all new Sinewave Controller and updated wire harness and controls. Sinewave Controllers are state of the art controller technology for Quiet smooth powerful acceleration and ride. The wire harness is military grade with plug and play plugs. The Bluetooth Device allows you to connect directly to the motor. Now instead of using a Smart Display and USB cable you can use your Android or iOS device to program the motor and mount it to your bike and use it to read current speed, power, distance, etc.
Specifications: 24, 36 ,48 and 52 volts for 500 - 1000 watts. At 24 volt it's great for the leisurely pathways. 36 volt for the street at 32 kph and 48/52 volts for high speed off road power and fun! Controller is USB programmable for tweaking speed, power, regenerative braking, etc. Features: Field Oriented Controller. State of the Art Technology. High Efficiency. Smooth Control. Programmable and Responsive
Please Note: You must either program the controller with a Golden Motor USB cable or use a Cycle Analyst or some other means to control the speed and power of this motor at 48/52 volts. With out this it is Offroad use only! Please read our legal.

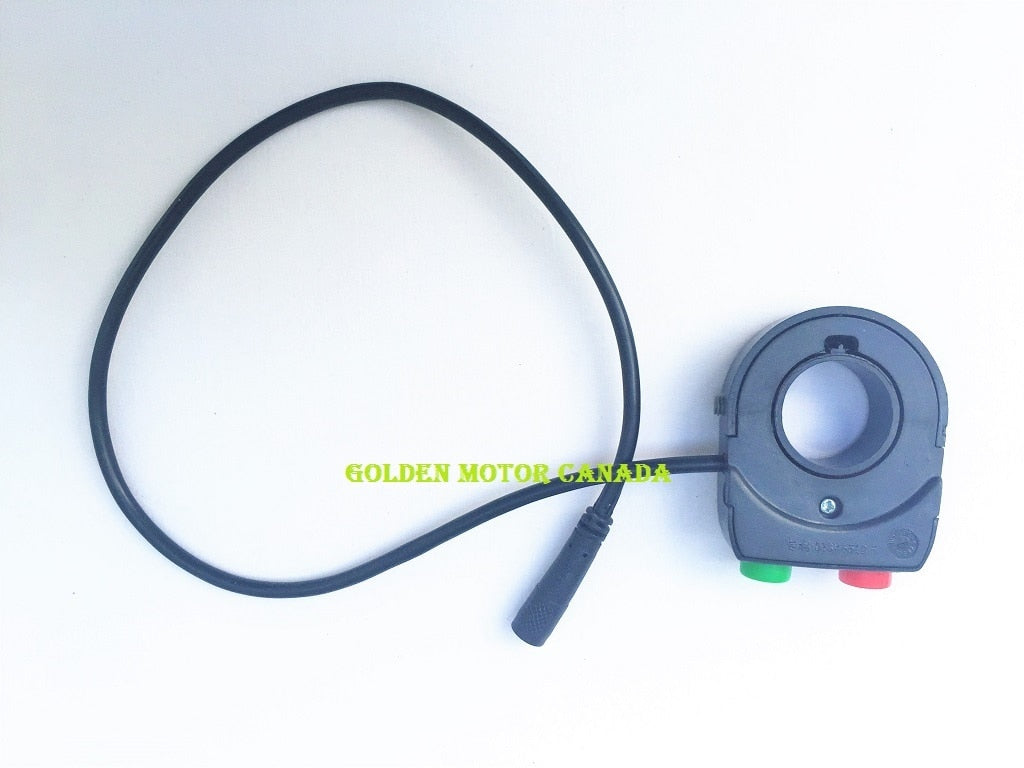

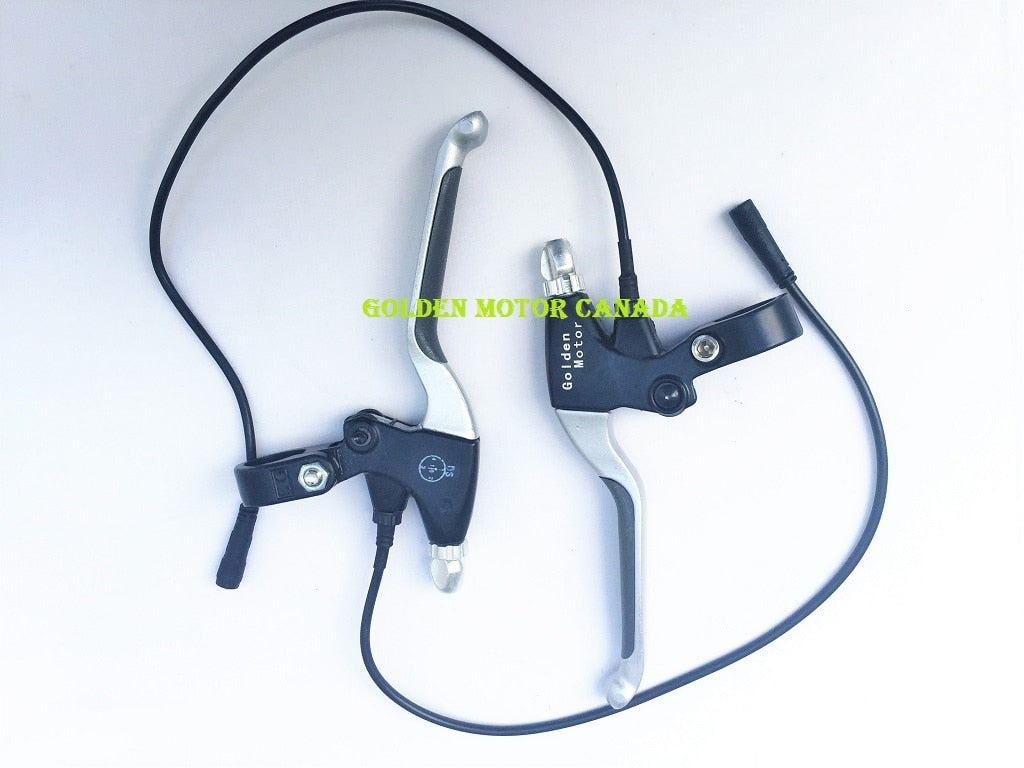

Kit Includes: Magic Pie Vector motorized wheel with brushless gearless hub motor Built in Vector Sinewave Controller for quick and easy setup. Double-wall Aluminium Rim Waterproof Military Grade Easy Connect wires Your Choice of Twist Throttle or Thumb Throttle Power brake levers for Regenerative Braking, Control switches for cruise control and optional horn and lights. Optional Items: Throttle: Choose a style and voltage to match you battery. If the throttle voltage does not match your battery the throttle will still work fine but will not display remaining power on the throttles LED's properly.
USB Cable: For programming the motor to set voltage, speed, power. etc. You need one of these. If you don't already have one order one. Download the software here.
Smart Display: A nice LCD Display for mounting on the handle Bars Displaying Speed, distance, power, etc. Also a Switch for adjusting pedelec settings if you are using one.

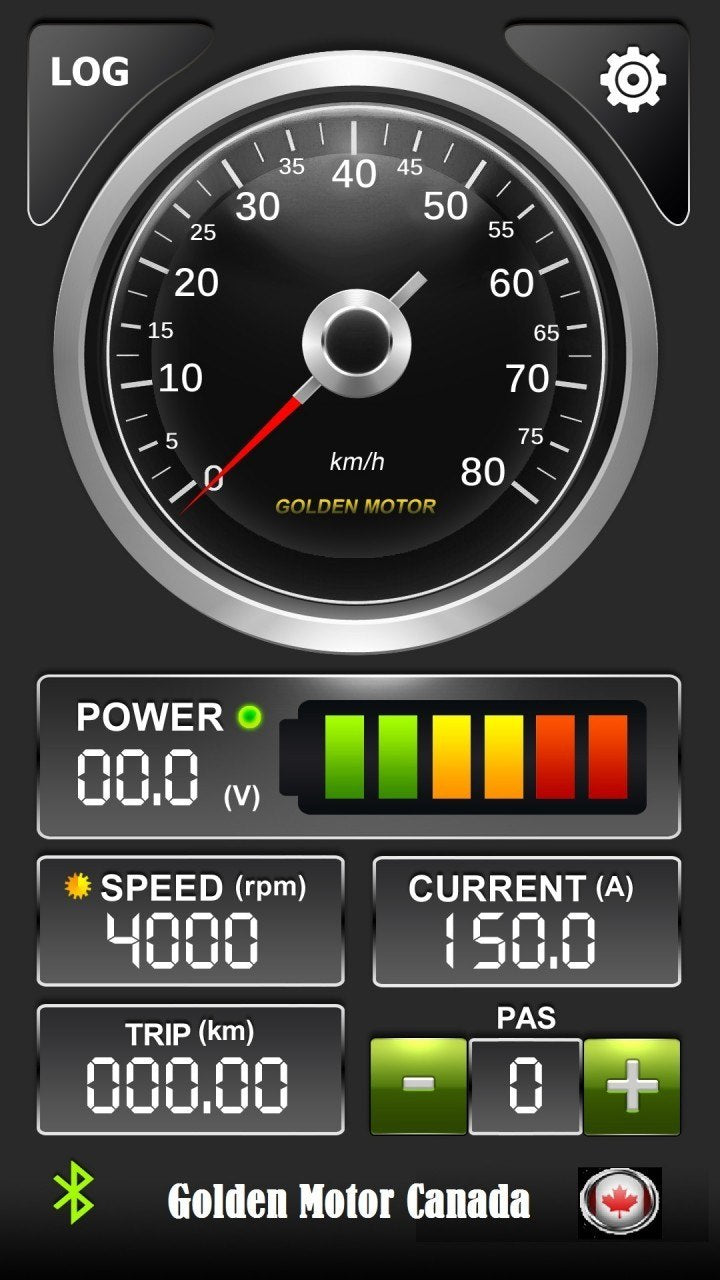

Bluetooth device: Turn your Android or iOS device In to your own Smart display with all the same features.
Torque Arm: Front wheels must use Torque arms. If you don't have any at least order one, two is better. Rear torque arms are optional but still recommended for safety.
Battery is not included but can be found here.
Please Note: Although almost all devices from android 4.4 and up seem to work fine with the app we can not guarantee it will work with your device. If you order a Bluetooth dongle and it does not work with your device you can send the dongle back for a refund or exchange for a smart display. There seems to be nno issues with iOS devices except some older smaller screens can only view the app properly in landscape mode.
Features: Major improvement of internal motor controller and cooling fan! Built in fan Improved heat dissipating Easy Disk Brake mounting Major improvement in quality of wiring harness and plugs Motor: 24v- 60v 250W - 1500W Brushless Gearless Hub Motor High Efficiency / High Torque Super Slim for common bikes Controller: Vector Controller with Sine Wave Technology and Bluetooth!24v/36v/48v Multi voltage Max 25a Continuous power Upgraded Mosfet Regenerative Braking Easily replaceable by plug PC programmable Forward/Reverse PLEASE NOTE: This motor is recommended to be run with a 24, 36 or 48 volt battery. You will need a USB cable to set the proper voltage. A fully charged 48/52 volt battery can read as high as 58 volts and the controller will still function up to 59.9 volts. If you attempt to run this motor with a battery over 52 volts you will burn the fets that are rated at 63 volts max. A fully charged 60 volt battery can read as high as 69 volts and will fry the controller as soon as you apply power. For a warranty controller replacement you must send it back to us for inspection. If the fets are burnt from over volting your warranty is void.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
