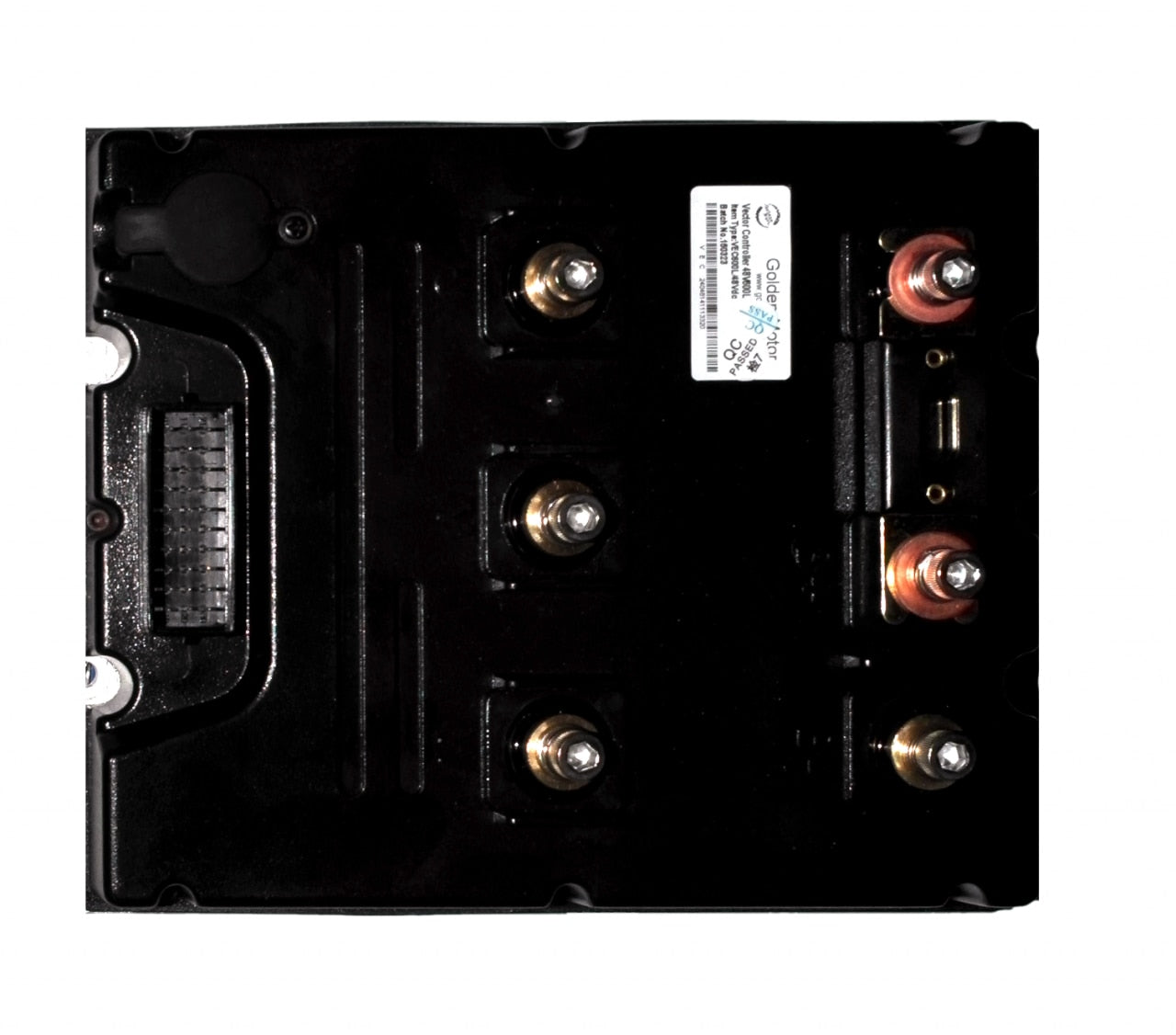

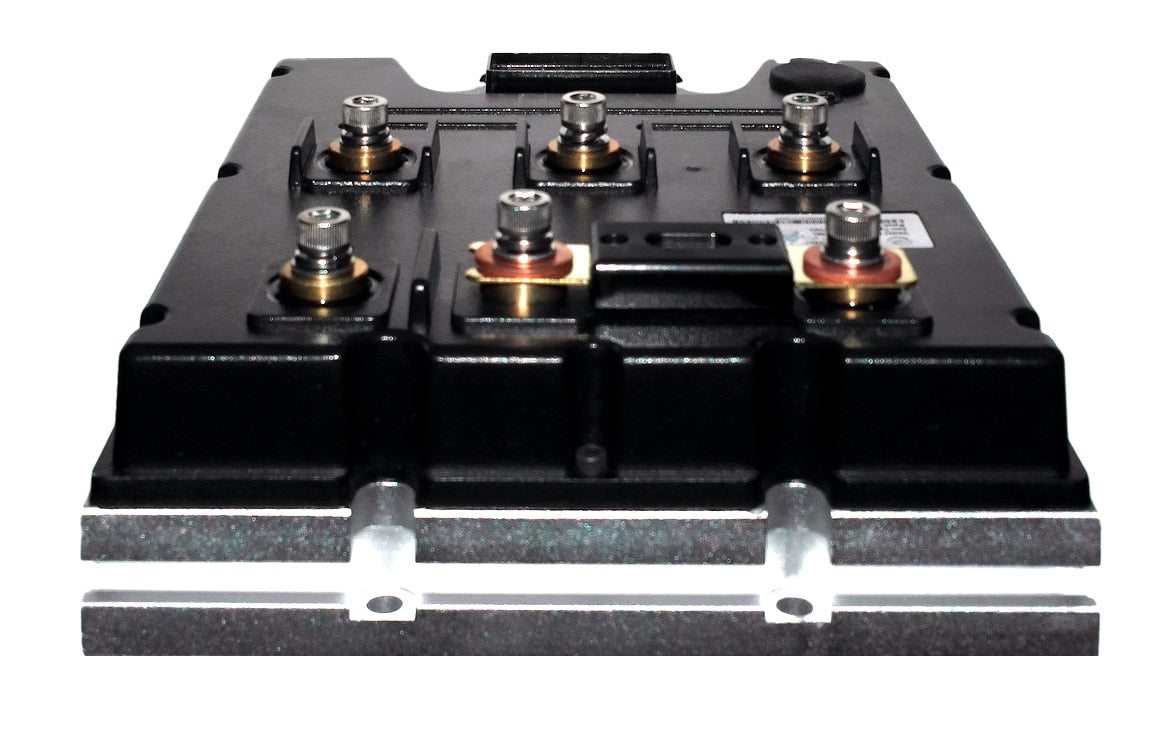

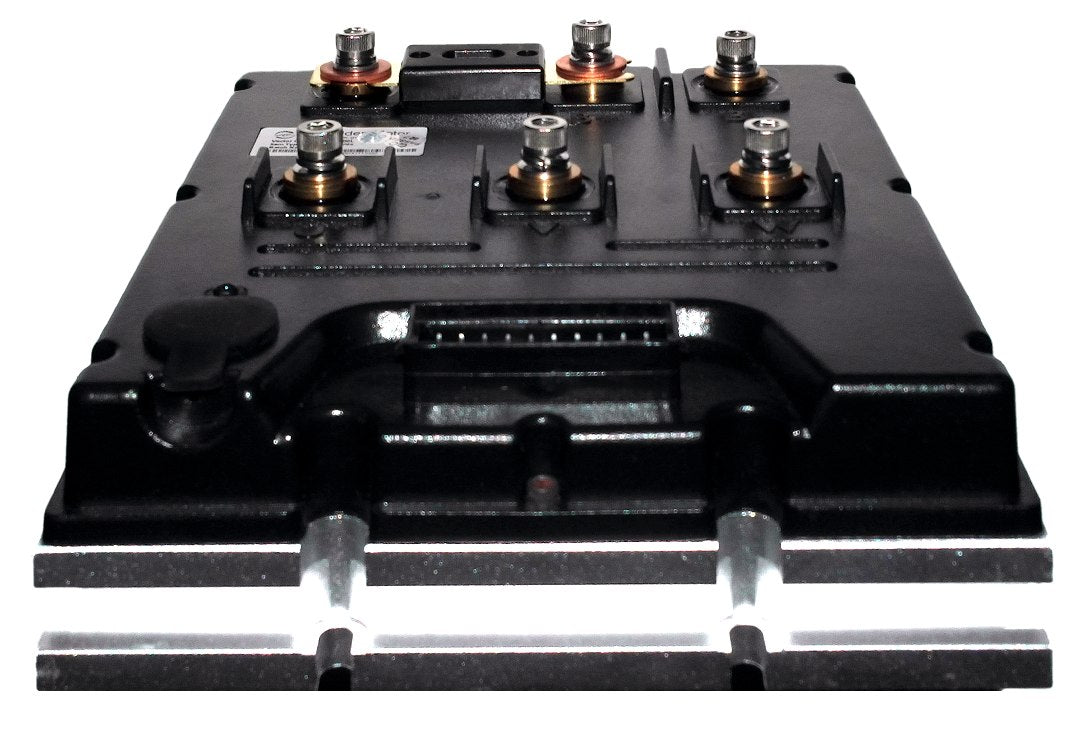

VECTOR 600 Series Brushless Motor Controller

– Model: VEC600 Series — Brushless Motor Controller for 48 Volt 10 KW Motor
– Model: VEC600
– Voltage: 48V
– Rated DC BUS current: 30A¡«200A
– Rated output power: 1000¡«10000W
– Motor control mode: FOC
– Quiescent operation
– Current: 20~40mA
– Speed limit: Controlled by motor and configuration
– Driving method: Direct torque control
– Keyway Size: 190mm(L) x 180mm(W) x 50mm(H)
– Weight: 2.5kg
