Bafang BBSHD (48-52 Volts) 1000 Watt (68mm-120mm) Mid Drive Kit (UART)
FREE shipping in USA and Canada for orders over $500
Pairs well with
Product Description
Bafang BBSHD 1000W mid-drive kit (48-52V, 68mm-120mm), delivering high torque and smooth pedal assist for e-bike conversions and custom builds.
- Best price anywhere with free Canada and USA shipping* - no one else even comes close
- The Bafang BBSHD Mid Drive kit is by far the most popular and reliable Mid Drive kit on the market today
- With a Rated power of 1000W and Max Torque 160 N.m it is sure to please anyone looking for a mid-drive for off road riding on trails, beaches, hilly terrain, etc.
- Over 85% efficient which greatly increases riding comfort and going the distance - Suitable for all types of bikes like street, touring, mountain bikes, beach cruisers, tandem bikes, trikes, pretty much any bike
- Mid drive motors provide powerful eBike performance while keeping the bike original enough that pedaling without the motor powered on has no effect on the ability to pedal the bike as normal
What is included?
- Bafang BBSHD 48v1000w Mid Drive Motor

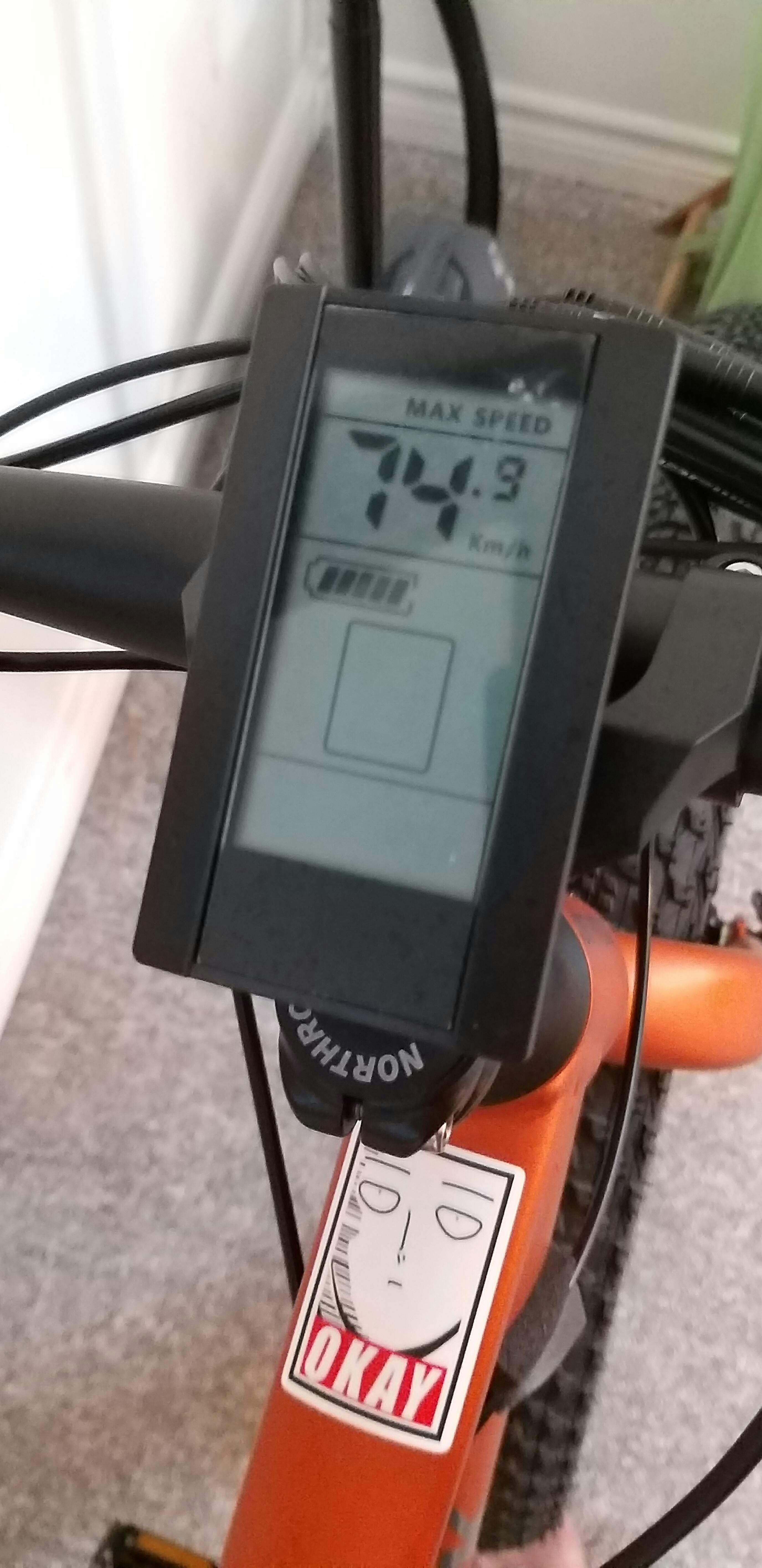

- LCD Display – You choose which one
- 46t Chain wheel
- Pair of Crank set (pedal arms – does not include pedals)
- Thumb Throttle
- Pair of eBrake levers
- All wires and cables
With the display you can set:
- Wheel size
- Pedal assist levels
- Speed limit (Max speed settings are model dependent)
- Please note these settings don’t mean your bike will go this fast - it only means the motor will not be restricted unless it hits these speeds
BBSHD specifications:
- Geared motor
- Max Current 30A
- Suitable for 48v or 52v battery
- Weight: 4.8kg
- RPM: 130-150
- Max Torque: 160 N.m
- Efficiency: ≥ 85 %
- Number of Magnet Poles: 16
- Noise: < 55 dB
- Waterproof Grade: IP65
- Standard kits fit 68-73 mm bottom bracket
- Fatbike kits fit 100mm and 120mm bottom bracket - select kit accordingly
- Battery: Not included
- Free shipping in Canada and USA includes 10 provinces in Canada and Lower 48 states in USA
The shipping was in a timely manner and once I had a day to put the part together, I had fears there was going to be an offset of the chain line but all was good thank to the lekkie chainring
Fast shipping. Amazing customer service.
Excellent Bafang kit for conversion work. Golden Motors ia a go to shop for e-bike parts.
Thought long and hard about what to get for my third motor type, and decided to go with another old faithful HD, Over 60K miles on my 2 prior ones 3 builds of of each one. Simple, silent, powerful, and robust.

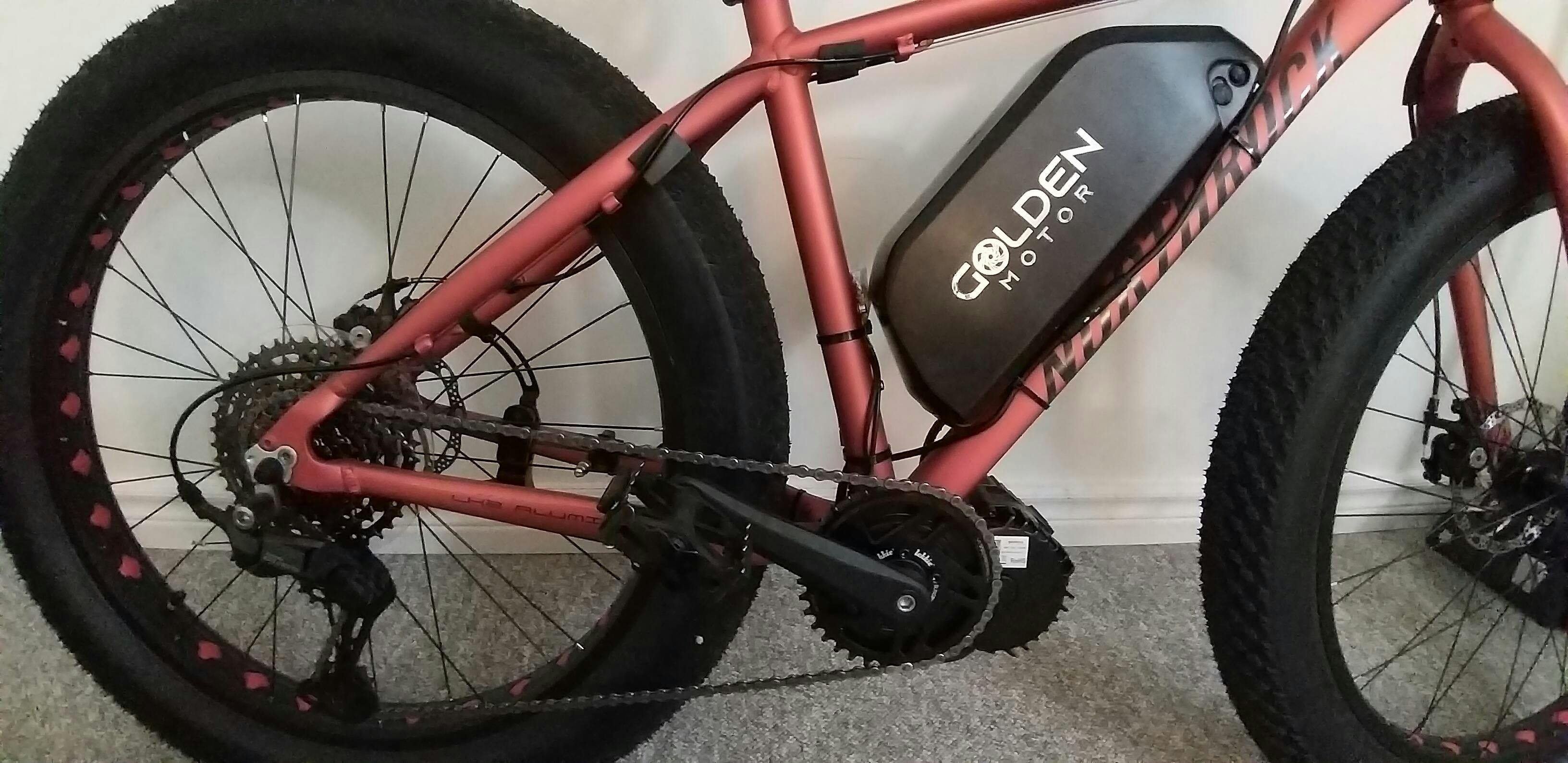

This motor rocks on my Surly Big Dummy (with a Lekkie Bling Ring). Get some cable extensions, too.
