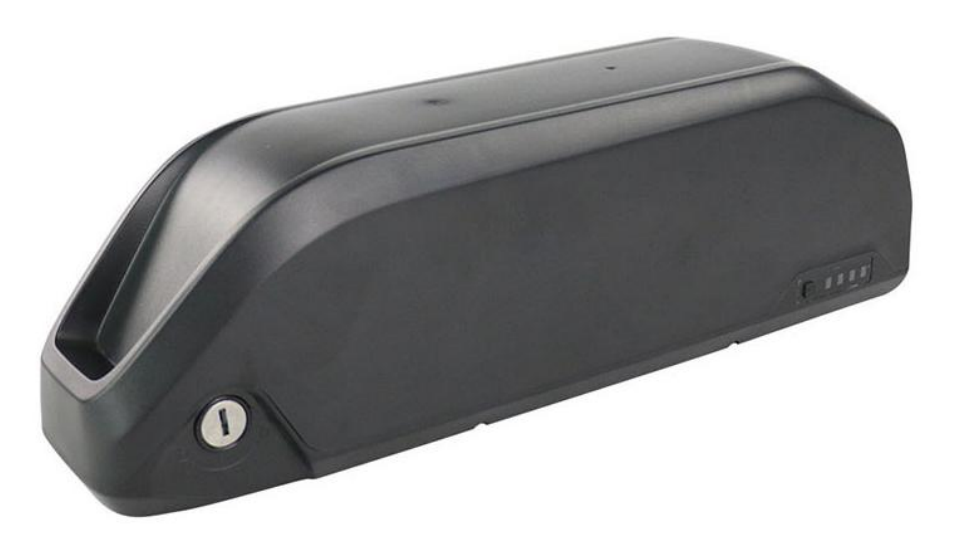

52V 14Ah E-Bike Lithium Battery Shark Pack
Pairs well with
Product Description
Product Description:
The 52V 14Ah (14S × 4P) lithium-ion battery pack, built with high-performance 21700 cells delivering 728Wh of energy excellent range for longer rides and hill climbing.
Encased in a compact DP-6 slide-rail case with a key lock and LED indicator, it's ideal for mid-drive and hub-motor e-bike systems requiring up to 45A continuous current.
A built-in 45A BMS provides full electronic protection with an impressive 800+ cycle lifespan at over 80% capacity retention one of the longest-lasting packs in its class.
| Parameter | Specification |
| Model | LPY-R049-2 |
| Nominal Voltage | 52V (14S Li-ion configuration) |
| Dimensions | 368 × 90 × 113 mm 14.49 × 3.54 × 4.45 inches |
| Nominal Capacity | 14Ah (min 13.6Ah) |
| Cell Type | INR 21700 3.7V Li(NiCoMn)O2 |
| Configuration | 14S × 4P |
| Watt Hours | ≈ 728 Wh |
| Standard Charge | 58.8V CC/CV @ 0.2C (3A max) |
| End-of-Charge Current | 0.02C |
| Charging Time | ≈ 7.5 hours (with 2A charger) |
| Max Continuous Discharge Current | 45A |
| Over-Current Protection | 120 ± 15A |
| Cycle Life | ≥ 800 cycles (@ ≥ 80% capacity) |
| BMS Protection | Over-charge / Over-discharge / Over-current / Short-circuit |
| Over-Charge Protection (Cell) | 4.25V ± 25mV |
| Over-Charge Protection (Pack) | 59.5V |
| Over-Discharge Protection (Cell) | 2.75V ± 80mV |
| Output Connector | 12AWG cable with connector |
| Case Type | DP-6 slide rail with key lock |
| Weight | ≈ 4.5 kg (9.9 lbs) |
| Operating Temperature | Charge 0 – 45°C / Discharge –10 – 60°C |
| Storage Temperature | –20 – 45°C (half-charged; recharge every 3 months) |
Included in Package
- 1 × 52V 14Ah DP-6 Battery Pack (with slide rail mount and key lock)
- 1 × 58.8V Charger
- 1 × Discharge cable with connector
Safety & Handling
- Use only Li-ion 58.8V CC/CV chargers (supplied).
- Do not short, reverse polarity, or charge below 0°C.
- Do not disassemble, crush, or expose to fire.
- Store cool and dry at ≈ 50% SOC if unused > 3 months.
- Avoid water immersion and direct heat sources.
- If you notice any swelling, odor, leakage, or deformation stop using immediately and contact support.
How to maintain the battery?
The battery should be stored in a clean, dry, ventilated environment at room temperature. When unused, keep it at 30–50% charge and recharge it every 3 months to prevent over-discharge.
Charging Instructions
The charger's indicator light will display red while the battery is charging. Once the battery is fully charged, the indicator will change to green. Full charge takes approximately 7.5 hours with the included 2A charger.
How to prolong your lithium ion battery?
Recharge your batteries before they are completely dead.
After every 30 charges, allow your lithium based battery to completely discharge before recharging.
If the battery cannot hold a charge even after proper charging, it may be time for a replacement.
What about warranty?
- We provide 12 months warranty
- Product quality guaranteed by PAIC insurance
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
