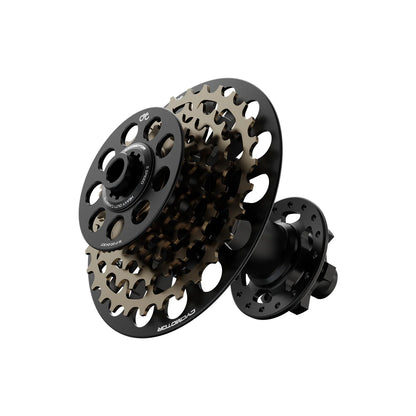

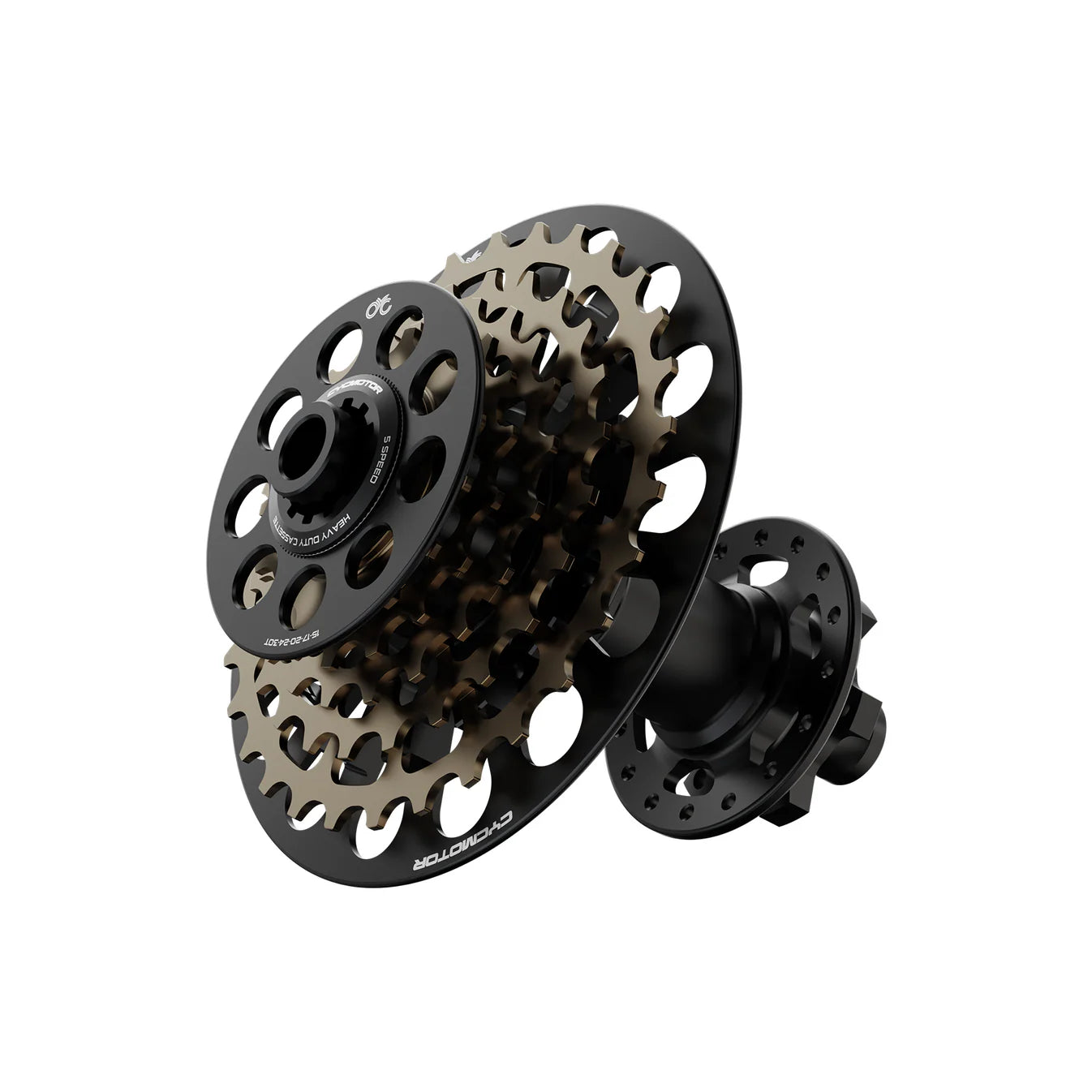

CYC Heavy-Duty 5-Speed Drivetrain – 15-30T Cassette, Hub, Microshift Shifter & Derailleur, KMC Chain
Couldn't load pickup availability
Pickup available at Shop location
Usually ready in 24 hoursPairs well with
Product Description
The CYC Heavy-Duty Drivetrain is a complete 5-speed setup built to take the torque of a high-power mid-drive. Standard 10-12 speed parts tend to wear quickly behind a strong motor. This kit uses a wide-spaced 15-30T cassette in Chromoly steel and 7075 aluminum, a 24-point AlexRims e-bike hub with a steel freehub, a Microshift Advent clutch derailleur and shifter, and a rust-resistant KMC e9 chain. It's designed for CYC mid-drives, and it's a solid upgrade for any high-torque build.
Will it fit my bike?
- Rear hub: 12mm x 148mm thru-axle (Boost). Also fits 150mm or 157mm frames with a spacer.
- Needs a thru-axle frame with 148mm or wider rear spacing. It won't fit 135mm or 142mm frames.
- 6-bolt disc brake mount, 32 spoke holes (J-bend).
- Single-click right-hand shifter.
Not sure about your frame? Send us your bike's make, model and rear axle size and we'll confirm the fit before you order.
System Compatibility
- All CYC mid-drive motor systems (CYC mid-drive kits)
What's in the box
- Heavy-Duty 5-Speed Cassette
- AlexRims e-Bike Rear Hub
- Microshift Advent Trail Pro Shifter
- Microshift Advent Super Short Cage Clutch Rear Derailleur
- KMC e9 Turbo EPT Chain
Specifications
-

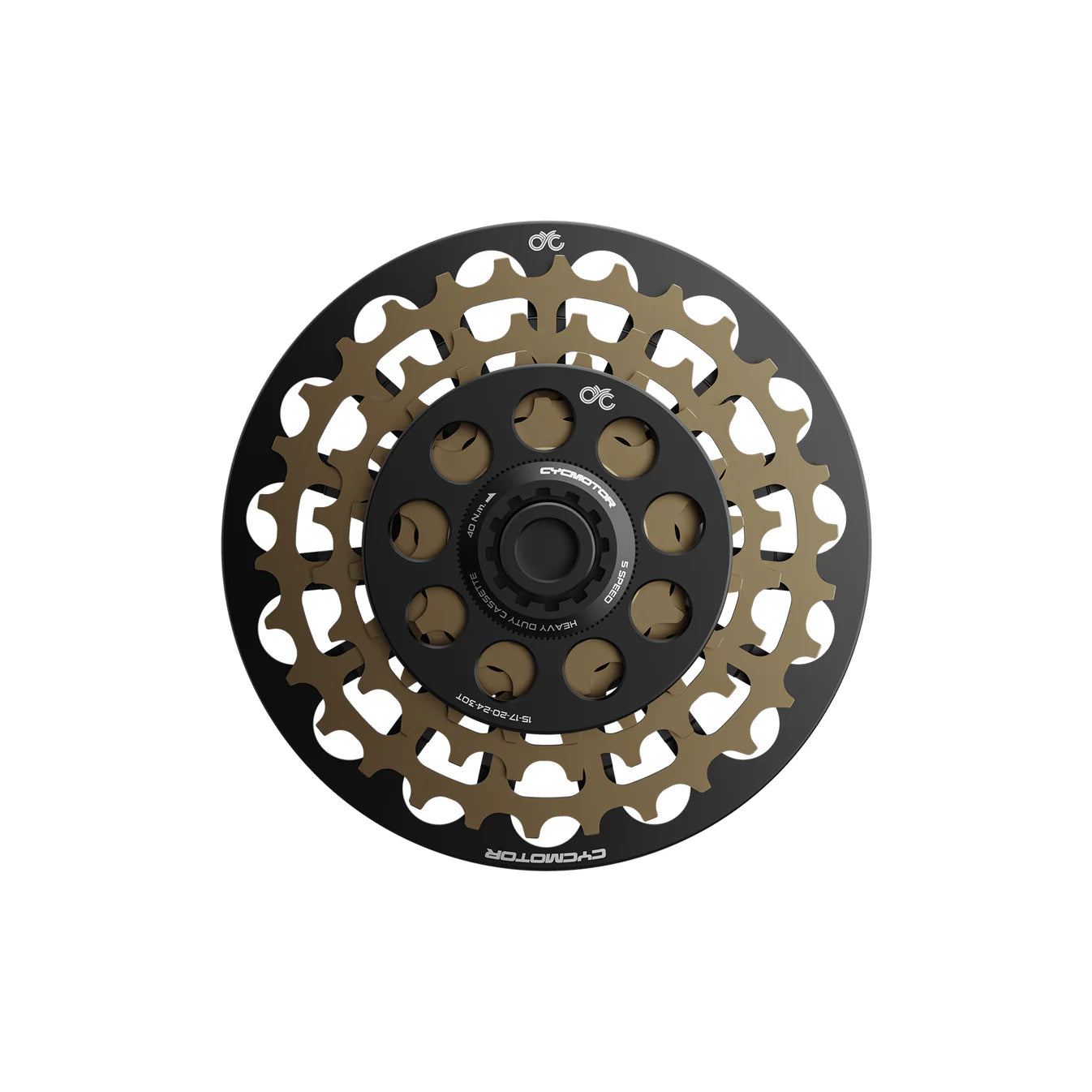

Cassette
- Speed: 5-speed
- Gearing: 15-30T (15-17-20-24-30T)
- Material: Chromoly steel, Aluminum 7075
- Optimum/operating chainline: 51.7mm center (20T), 60.7mm final cog (15T), 42.7mm 1st cog (30T)
-

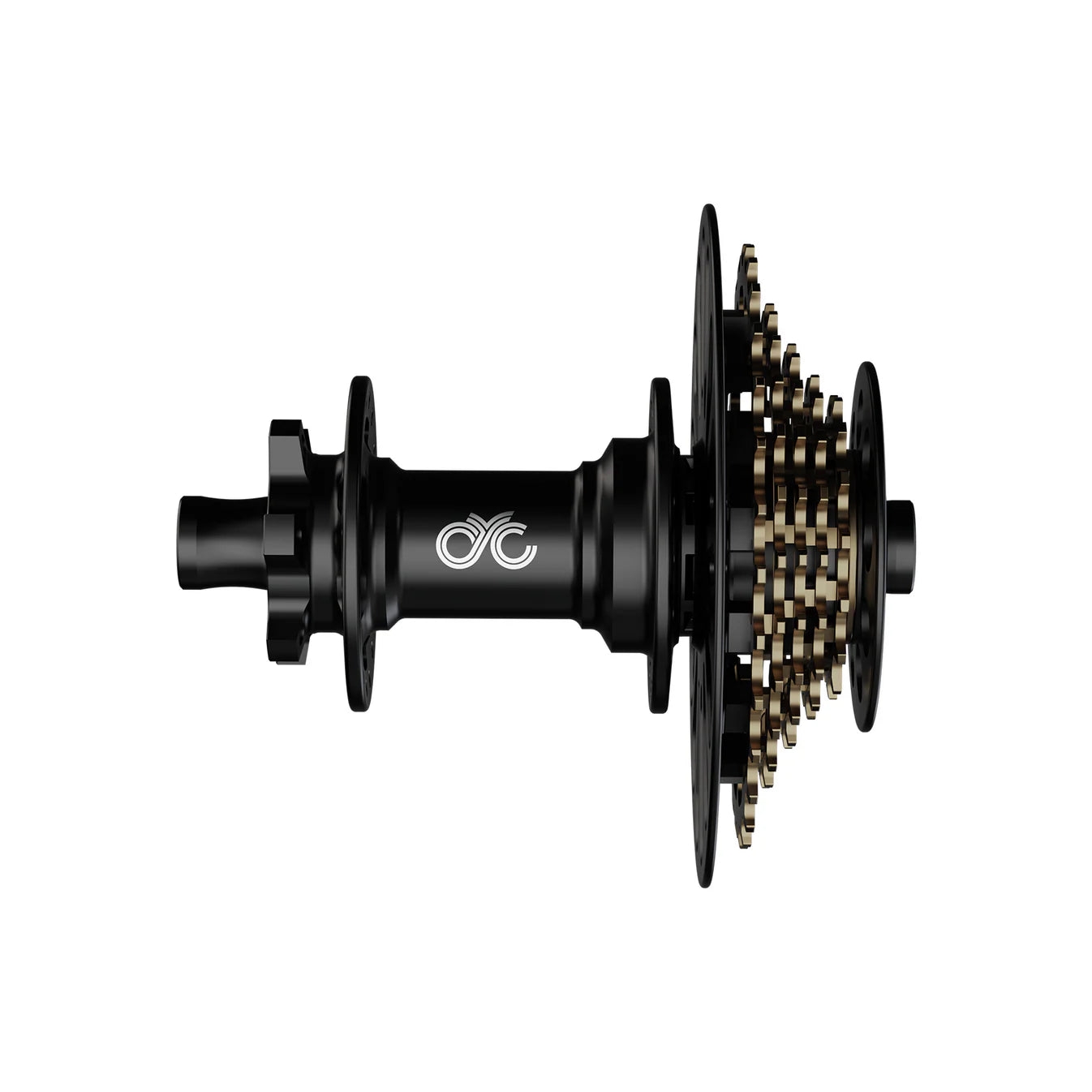

Hub
- AlexRims e-Bike Rear Hub, Model 5SB
- Engagement points: 24 (15 degrees)
- Freehub: ratchet-type, steel, Shimano HG (3SB IMPEL 24T)
- Axle: steel thru-axle, 12mm x 148mm OLD (150mm or 157mm with spacer)
- Brake: 6-bolt disc
- Spokes: 32H, J-bend
- Finish: sanded black
-
Shifter
- Microshift Advent Trail Pro, single click, right side, aluminum clamp
-
Derailleur
- Microshift Advent super short cage clutch derailleur, model RD-M6195S
- Cage: steel. Outer link: aluminum
-
Chain
- KMC e9 Turbo EPT (anti-rust), 1/2" x 11/128", 136 links
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
