Lekkie PF30 Bafang Adapter (Eccentric)
Couldn't load pickup availability
Pickup available at Shop location
Usually ready in 24 hoursPairs well with
Product Description
Convert a PF30 bike with a Bafang mid-drive

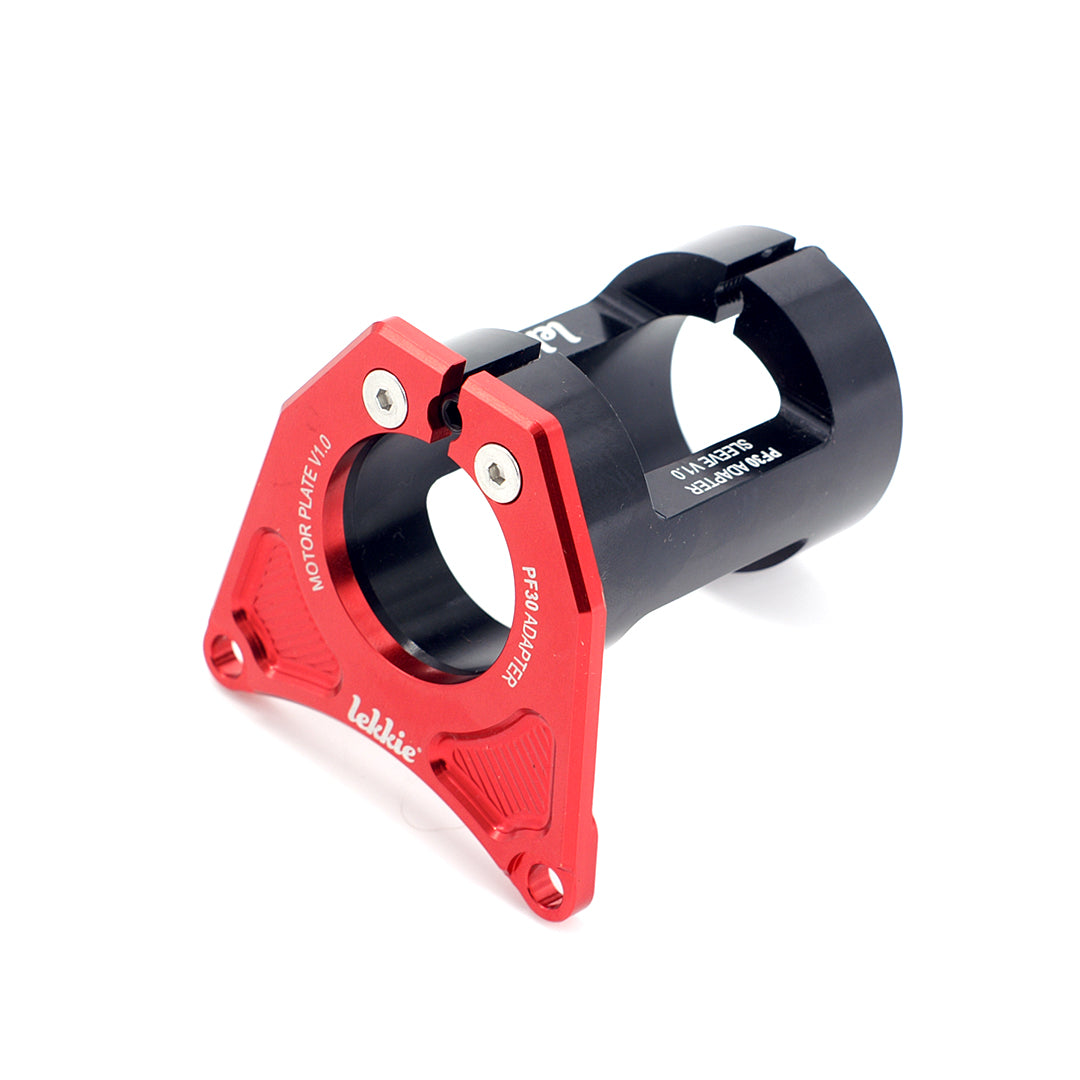

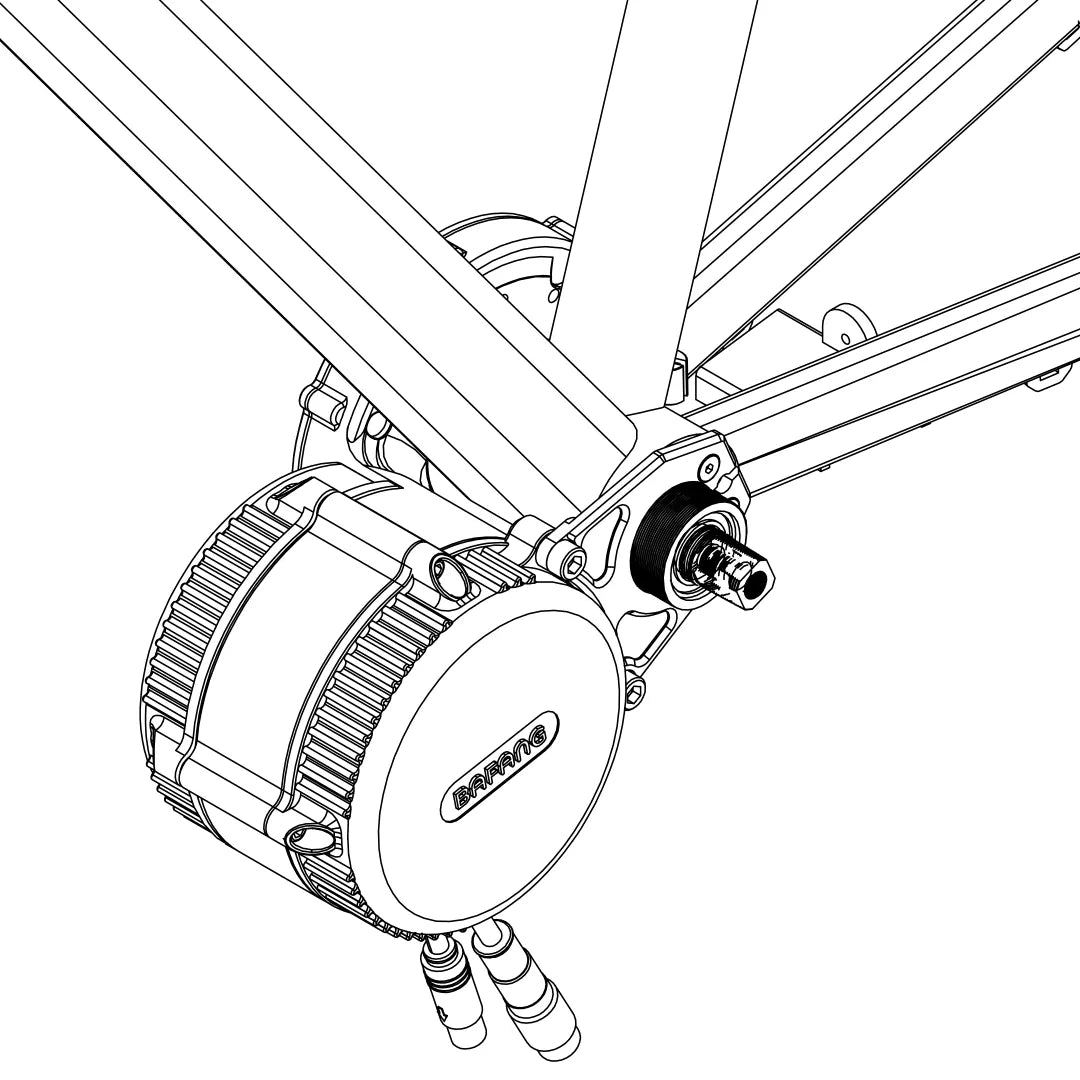

PF30 press-fit bottom brackets are common on modern frames, but a standard Bafang motor won't fit them. Lekkie's eccentric PF30 adapter changes that. It lets a 68mm Bafang motor mount in a PF30 frame (46mm inner diameter) without modifying or disassembling the motor.
It's CNC machined from 6061 T6 aluminum and finished in black with a red plate.
Check your frame before you order
- Shell size: must be PF30 with a 46mm inner diameter.
- Shell outer diameter: designed for alloy frames up to 54mm outer diameter.
- Carbon frames: thick carbon around the bottom bracket often prevents the motor from fitting.
- ISG chain-guide mounts: these can interfere with motor clearance and may need modifying.
Not sure your frame qualifies? Send us the frame model and a photo of the bottom bracket and we'll check first. Have a BB86 or BB92 frame instead? You'll need the Lekkie BB86/92 adapter.
Specifications
| Fits | Bafang BBS01, BBS02, BBSHD (68mm; UART and CANbus) |
| Frame | PF30, 46mm inner diameter, 54mm max outer diameter |
| Material | 6061 T6 aluminum, CNC machined |
| Finish | Anodized black with red plate |
| Weight | 148g |
| Version | V1, released 2020 |
Read the PF30 adapter user guide before installing.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
