Screw, M4x8 (5.3mm dia | 4mm H | Hex | BLK)

2

2.7 Nm

Chainring Spider

Screw, M4x5 (Cone Point Set | Hex | BLK)

2

2.5 Nm

Chainring Bashguard

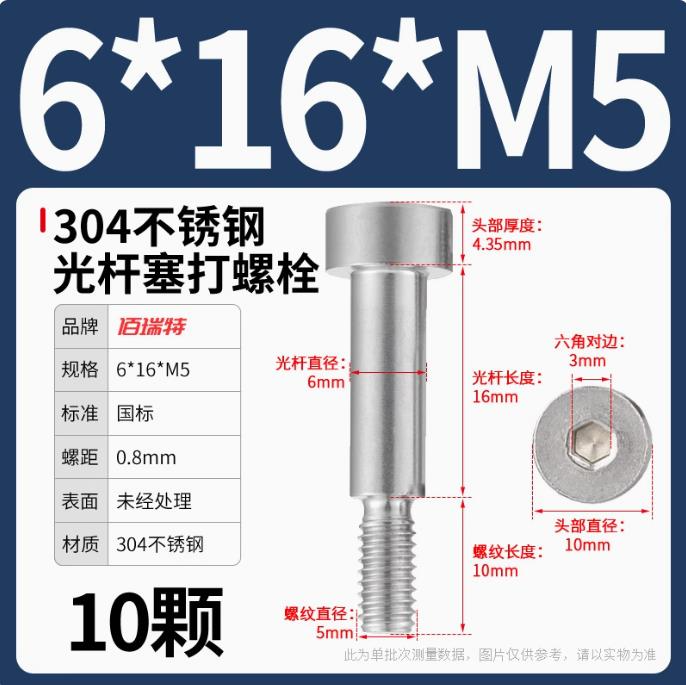

Shoulder Screw, M5x6x15 (Hex | H3)

2

3 Nm

A-Frame

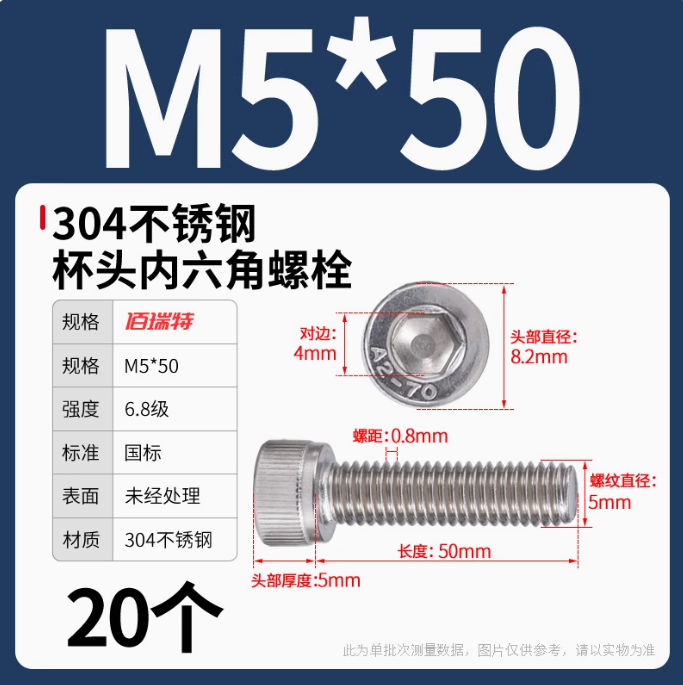

Screw, M5x50 (Socket | Hex | Silver)

4

3 Nm

Controller Assembly to the Motor Body

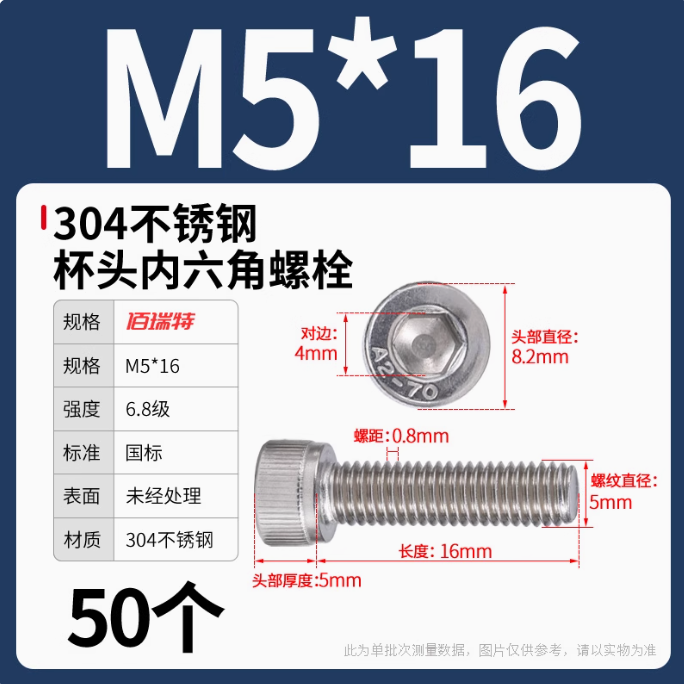

Screw, M5x16 (Socket | Hex Silver)

2

3 Nm

Motor Assembly to the Main Body

M15  Crank Arm Screw

2

55 N.m

Crankarms
