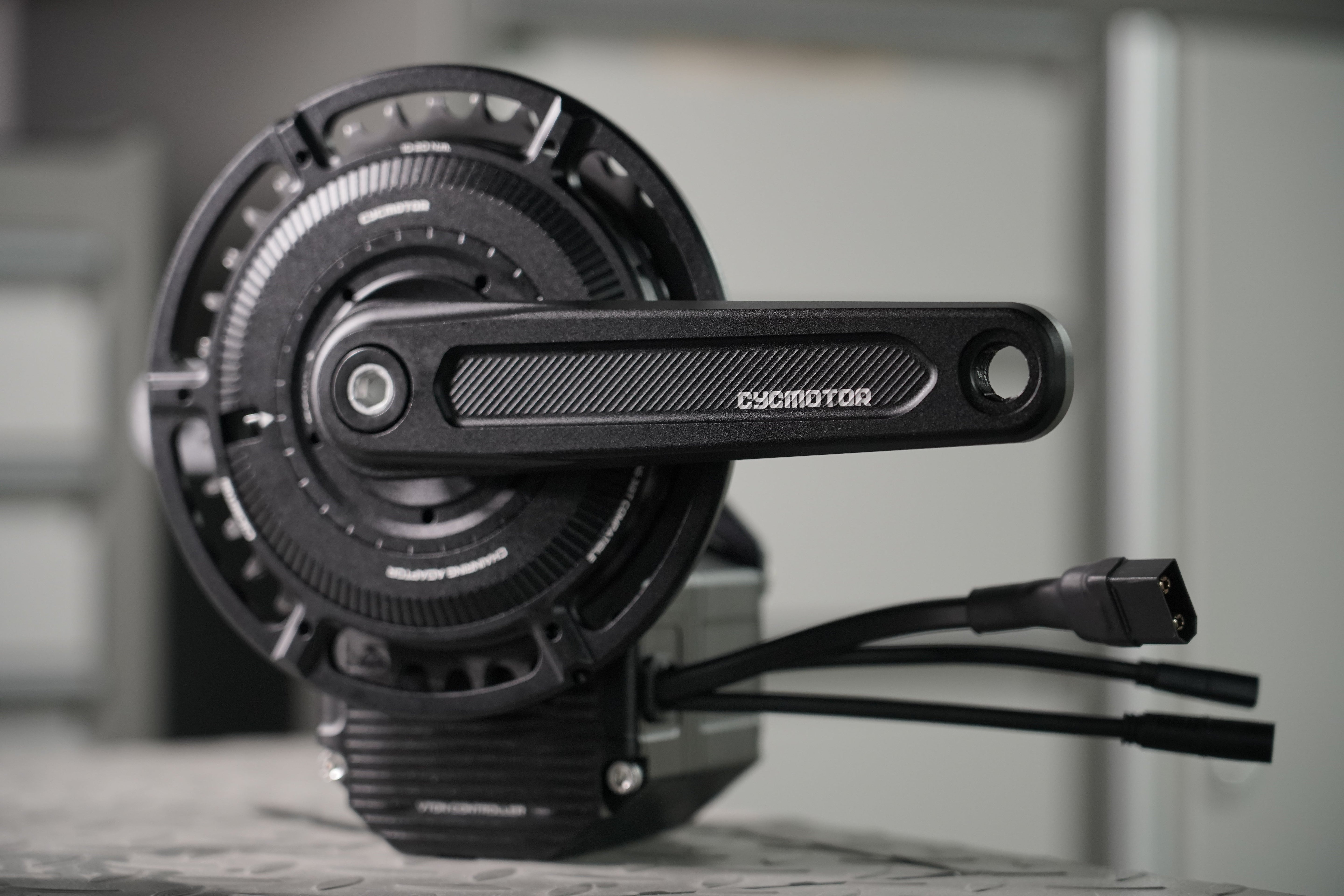

Photon Gen 2: Product Compatibility

Stage 1 Gearbox

Photon Gen 1	Part Number	Part Name	Quantity	Photon Gen 2	Part Number	Part Name	Quantity
	P3-B14B	59T Gear	1		PHN-G2-01-06	Proton 55T Gear	1
	P3-B44	Stage 2 Gear Waterproof Shield	1		P3-B44	Stage 2 Gear Waterproof Shield	1

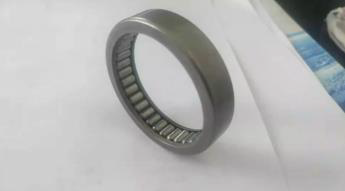

		Clutch, STP-MP-SPC-DC5476-10	1			Clutch, STP-MP-SPC-DC5476-10	1
		Bearing, 6816-2RS (80x100x10mm)	1			Bearing, 6816-2RS (80x100x10mm)	1
		Bearing, 6811-ZZ (55x72x9mm)	1			Bearing, 6811-ZZ (55x72x9mm)	1
		O-Ring, OD66x1mm	1			O-Ring, OD66x1mm	1

Photon Gen 1	Part Number	Part Name	Quantity	Photon Gen 2	Part Number	Part Name	Quantity

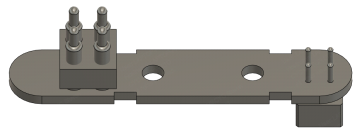

	PHN-ASMB-07-01B	Torque sensor stationary POGO pin version	1		PHN-ASMB-07-01B	Torque Snsr Sttnry POGO pin version	1

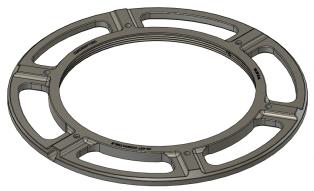

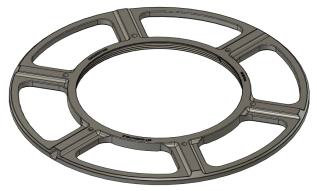

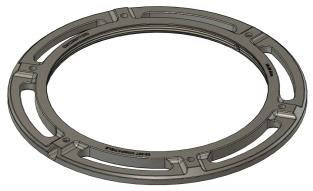

	PHN-ASMB-07-02	Torque Sensor Rotating	1		PHN-ASMB-07-02	Torque Sensor Rotating	1

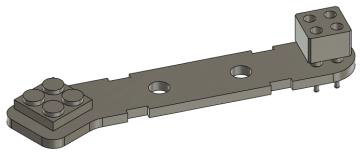

	P3-E08C	Torque sensor transfer PCB	1		PHN-G2-03-01	Torque Sensor Upper PCB	1
	P3-E05C	CYC-Torque-4P 2024-03-06	1		PHN-G2-03-02	Torque Sensor Bottom PCB	1
						Head Pin 2x2 35mm	2
		Bearing, 6806-ZZ (30x42x7mm)	1			Bearing, 6806-ZZ (30x42x7mm)	1

Photon Gen 1	Part Number	Part Name	Quantity	Photon Gen 2	Part Number	Part Name	Quantity
	P3-B06C	Offseted chainring adaptor	1		PHN-G2-04-01	Chainring Spider	1
	P3-B12	Starfish retaining cover	1		PHN-G2-04-02	Chainring Retaining Cap	1
	P3-B28E3	Chain Cover 34-36T	1		PHN-G2-04-03	36-38T Bash Guard	1
	P3-B28B, B2	Chain Cover 38T	1

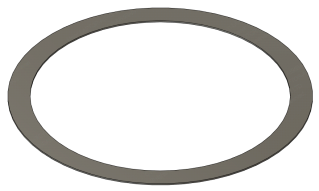

	P3-B37	Offseted chainring spacer	1		PHN-G2-04-04	Spacer Ring	1
	P3-B25G2	34T Chainring	1
					PHN-G2-04-05	36T Chainring	1
	P3-B25C	38T Chainring	1		PHN-G2-04-06	38T Chainring	1
	P3-B28D, D2	Chain Cover 42T	1		PHN-G2-04-07	40-42T Bash Guard	1
					PHN-G2-04-08	40T Chainring	1
	P3-B25E	42T Chainring	1		PHN-G2-04-09	42T Chainring	1
	P3-B28C, C2	Chain Cover 50T	1		PHN-G2-04-10	50T Bash Guard	1
	P3-B25F2	Chainring 50T-Spline JK teeth profile	1		PHN-G2-04-11	50T Chainring	1
	P3-B32	BB Bearing Cover (Right)	1		P3-B32	BB Bearing Cover (Right)	1
		Bearing, 6805-2RS (25x37x7mm)	1			Bearing, 6805-2RS (25x37x7mm)	1
						Screw, M4x8 (Low \| Scoket \| Hex)	2
		Screw, M4x5 (Cone Point set \| Hex \| BLK)	2			Screw, M4x6 (Cone Point set \| Hex \| BLK)	2
		O-ring (OD56x1.2mm)	1

Photon Gen 1	Part Number	Part Name	Quantity	Photon Gen 2	Part Number	Part Name	Quantity
	P3-B01	Main Body	1		PHN-G2-05-01	Photon Housing	1
	P3-B11A	Body mounting sheetmetal	1		PHN-G2-05-02	83mm A-Frame	1
					PHN-G2-05-03	100mm A-Frame	1
	P3-B11A2	120mm body mounting sheetmetal	1		PHN-G2-05-04	120mm A-Frame	1
	P3-B08A	8mm	1
	P3-B08B	9mm	1
	P3-B07B	Body Bearing Lock	1		P3-B07B	Body Bearing Lock	1
						Screw, M5x50 (Socket \| Hex)	4
		Screw, M4x25 (Socket \| Hex)	2			Screw, M5x10x18 (Shoulder \| Socket \| Hex)	2
		O-ring (OD66x1mm)	1

Photon Gen 1	Part Number	Part Name	Quantity	Photon Gen 2	Part Number	Part Name	Quantity
	PHN-ASMB-06	BSA83mm BB Cup V2	1		PHN-ASMB-06	BSA83mm BB Cup V2	1
	P3-B15H	Gen 3 BSA 83 Shaft (180mm)	1		P3-B15	Gen 3 BSA 83 Shaft (180mm)	1
	PHN-ASMB-06	BB92 BB Cup V2	1		PHN-ASMB-06	BB92 BB Cup V2	1
	P3-B15J	Gen 3 BSA 100 Shaft (200mm)	1		P3-B15J	Gen 3 BSA 100 Shaft (200mm)	1
	PHN-ASMB-06	BSA129 BB Cup V2	1		PHN-ASMB-06	BSA129 BB Cup V2	1
	P3-B03	Threaded Spindle Bearing Lock	1		P3-B03	Threaded Spindle Bearing Lock	1
	JCBR175IS-01-L	Left crank arm	1		JCBR175IS-01-L	Left crank arm	1
	JCBR175IS-01-R	Right crank arm	1		JCBR175IS-01-R	Right crank arm	1
		M15 Crank Arm Screw	2			M15 Crank Arm Screw	2

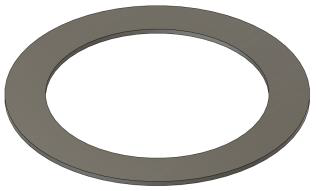

	X-03-21	BB spacer 35x45x3mm	2		P3-B36	Spacer 0.5x22x30	1
	P3-B36B	Spacer 7x22x30	1
	X-03-30	22x30x1 spacer	1
		Screw, M4x15 (Socket \| Hex)	1			Screw, M4x15 (Socket \| Hex)	1

Photon Gen 1	Part Number	Part Name	Quantity	Photon Gen 2	Part Number	Part Name	Quantity
		Gasket, Kafuter Silicone
		Grease, 7501, 1kg
		Multitop KP2N-40
		ECCO Grease MP135-2P-BL
		PAC-PHN-A_03+04+01+02
		Box, Motor, Phtn.
		Harness, 1T1
		Harness, 1T2
		Harness, 1T4
		Extension Wire, 8 Pin, 650mm
		Display, SW102
		Display, DS103
		Display, Intuition
		Thumb Throttle
		Throttle handle, Half Twist
		Throttle Handle, Full Twist
		BT Speed Sensor (Asmb)
		Magnet for BT Speed Sensor
		Brake Sensor with Magnet
		Grease G608, 5g pack
		Downtube Protector Plate
		Tool, V-Shape
		Extension Wire, Speed Sensor BT, 650 mm
		Extension Wire, Speed Sensor BT, 300 mm
		Foam, Photon, G
		Box, Parts, Photon
		Headlights
		Programming Wire, Photon
		Display Programming Cable 01
		Mudguard
		Keyring
