The short version of this e-bike battery guide: pick a 48V, 52V or 72V battery that your motor's controller is rated for, pick a pack whose BMS continuous current is at or above what that controller pulls, then size the amp-hours for your distance. Voltage sets speed and decides what your electronics can survive. BMS amps decide whether the bike pulls hard or cuts out at full throttle. Amp-hours decide how far you go.

Most battery questions we get come down to those three numbers, plus the connector and the charger. Here's how each one works and how to check a pack against your kit before you buy.

48V vs 52V vs 72V e-bike battery: what the numbers mean

The number on the label is the nominal voltage, an average across the discharge curve. A lithium-ion pack is built from cells wired in series (the "S" number), and each cell runs from about 4.2V full to around 3V near empty. Multiply by the series count and you get the real voltage range your controller sees.

So a "52V" battery comes off the charger at 58.8V and a "72V" pack at 84V. That full-charge number is the one that matters for your controller, display and lights, because it's the highest voltage they'll ever see.

Why people pick 52V over 48V

On the same motor and controller, a 52V pack spins the motor a bit faster and makes a bit more power at the same current, because watts are volts times amps. It isn't a huge jump (14 cells instead of 13), and the gain depends on rider weight, wheel size and controller settings, so don't expect a specific number of extra mph. What you must check first is whether your controller is rated for 58.8V at full charge.

When a 72V battery makes sense

A 72V battery is for kits built around it, like a 72V hub motor kit or a high-power mid-drive whose controller is rated for 84V. You can't put a 72V pack on a 48V or 52V system and "just ride gentle." The controller sees the full 84V the moment you plug in, and that's how controllers get destroyed. If you're shopping for a 72V battery for a Sur-Ron or Talaria, read the e-moto section below first.

Amp-hours, watt-hours and range

Amp-hours (Ah) is capacity at the pack's voltage. To compare packs at different voltages, use watt-hours:

Wh = nominal volts x amp-hours

• 48V x 17.5Ah = 840Wh
• 52V x 17.5Ah = about 910Wh
• 52V x 21Ah = about 1,092Wh
• 72V x 20Ah = 1,440Wh

Watt-hours are the fuel tank. A 52V 17.5Ah and a 48V 19Ah pack hold about the same energy.

Estimating range (an estimate, not a promise)

Range depends on pedaling, speed, weight, hills, wind, tire pressure and temperature, so nobody can promise you a mileage number. For rough planning only, moderate pedal assist on flat ground often lands around 20Wh per mile. Heavy throttle, high speed or a lot of climbing can double that or more, and cold weather cuts range further.

The reliable way to size a battery is to measure your own consumption. A display that shows Wh used, or a Cycle Analyst, gives you your real Wh per mile after a few rides (our Cycle Analyst V3 setup guide covers setup). Then:

Estimated range = pack Wh / your measured Wh per mile

Leave some margin. Lithium packs don't like being run to empty, and capacity drops in the cold and as the pack ages. The Shark Pack spec sheets rate cycle life at 500 cycles or more while keeping at least 70% of capacity.

BMS ratings: the matching rule that matters most

Every lithium pack has a battery management system (BMS). It balances the cells and shuts the pack off if something goes wrong: over-charge, over-discharge, short circuit, over-temperature, or too much current.

That last one causes most "my bike cuts out" problems. A BMS has two current ratings:

• Continuous discharge: what it will deliver indefinitely.
• Peak discharge: a short burst, usually rated for a few seconds.

Your motor controller also has a current limit, the battery amps it will pull at full throttle. The rule: the BMS continuous rating should be equal to or higher than the controller's battery current limit. If the controller asks for more than the BMS allows, the BMS trips. The bike cuts out under hard acceleration or on a climb, then comes back a few seconds later when the BMS resets.

We see this one regularly: a 40A pack on a 60A controller pulls fine at part throttle, then shuts off when the rider holds full power. Nothing is broken. The pack and controller just don't match.

Peak ratings are not a substitute

A 120A peak rating on a 50A pack is fine for a hard launch. It doesn't make the pack a 120A pack. Size off the continuous number. Peak specs also vary a lot between packs: the 52V 17.5Ah Shark Pack is rated 40A continuous with about 45A peak for 3 seconds, while the 52V 21Ah Jumbo Shark Pack is 50A continuous with 120A peak for under 10 seconds.

If your pack is weaker than your controller

You have two options. Get a pack with a higher-rated BMS, or turn the controller's battery current limit down to match the pack. On EZkontrol controllers that's "Max Bus Current" in the app; on other programmable controllers it's usually called the battery current limit. Step it down until the cut-outs stop. Our EZkontrol troubleshooting guide walks through this.

Matching an e-bike battery to your motor or kit

These figures come from current product listings, manufacturer specs and our support records. If your kit isn't here, or you're running a different controller, send us the controller label and we'll check it.

A few notes on that table:

• Magic Pie and 52V. A 52V pack is the top of the range for Magic Pie 5 and Edge. Our support notes say to leave the controller's nominal voltage setting at 48V when you run 52V (the setting is changed with the USB programming cable, see programming the internal controller). Anything over 52V nominal can burn the controller's FETs, and over-volting damage isn't covered by warranty.
• Bafang and 52V. A 52V pack on 48V firmware can throw Error 07 (over-voltage). The fix is flashing 52V firmware, covered in flashing the Bafang controller for error 07 and 30. If you buy a BBSHD from us, tell us your battery voltage when you order. Our Bafang error codes guide covers error 07 and the other codes in more detail.
• Two motors on one pack. Add the controller currents together. Two hub motors pulling about 25A each need a pack with a 50A BMS.

Worked example: BBSHD on 52V vs a TorqueX upgrade

Say you're running a stock BBSHD on 52V and commuting about 12 miles each way with some hills.

Step 1, voltage. The BBSHD takes 48V or 52V, and you've got 52V firmware. Good.

Step 2, current. The stock controller pulls up to 30A. At 52V nominal that's roughly 52 x 30 = 1,560W from the battery, a bit more on a full charge (58.8 x 30 = about 1,760W). A 40A BMS covers this with 10A of headroom.

Step 3, capacity. These Wh-per-mile figures are assumptions for the example, not measurements. At an assumed 25Wh per mile (hills, some throttle), 24 miles round trip is 600Wh. A 52V 17.5Ah pack holds about 910Wh, so on that estimate you'd finish the day with roughly a third left. If your real number turns out to be 35Wh per mile, that's 840Wh used and you're close to empty, which is when a 52V 21Ah (about 1,092Wh) starts to make sense.

Step 4, the upgrade. Now you swap in a TorqueX controller that pulls up to 60A. At 52V that's around 3,100W from the pack. The 40A pack that worked fine before will trip its BMS when you hold full throttle. You'd want a 60A continuous pack. A 50A pack can handle it in bursts, but avoid holding max power for long periods. Or turn the controller's battery current down to what the pack can deliver.

72V battery for a Sur-Ron or Talaria

Light electric motos use the same rules at bigger numbers, and the stock voltage depends on the model and year. Going by the bikes, OEM chargers and parts we stock:

• Sur-Ron Light Bee X, 2025 and earlier: a 60V system (the replacement LBX charger is 60V 10A).
• Sur-Ron Light Bee X, 2026: a 72V 35Ah pack from the factory.
• Sur-Ron Ultra Bee: a stock 74V pack (55Ah or 60Ah) that charges to 85V.
• Talaria Sting MX5: a 72V 40Ah OEM pack. The Talaria X3 uses a 60V 38.4Ah pack.

Putting a 72V battery on an older 60V Light Bee is a common upgrade, but it's a system change, not a battery swap. The controller has to be rated for the 72V pack's full 84V charge, the BMS has to handle what that controller pulls, and you need an 84V charger. Check your controller's voltage rating with its manufacturer before you buy a pack.

Always use the charger made for your bike's pack. A 60V Light Bee charger won't correctly charge a 72V pack, an Ultra Bee charger won't fit a Light Bee, and Ultra Bee chargers changed plugs for 2026.

Cells: what's inside the pack

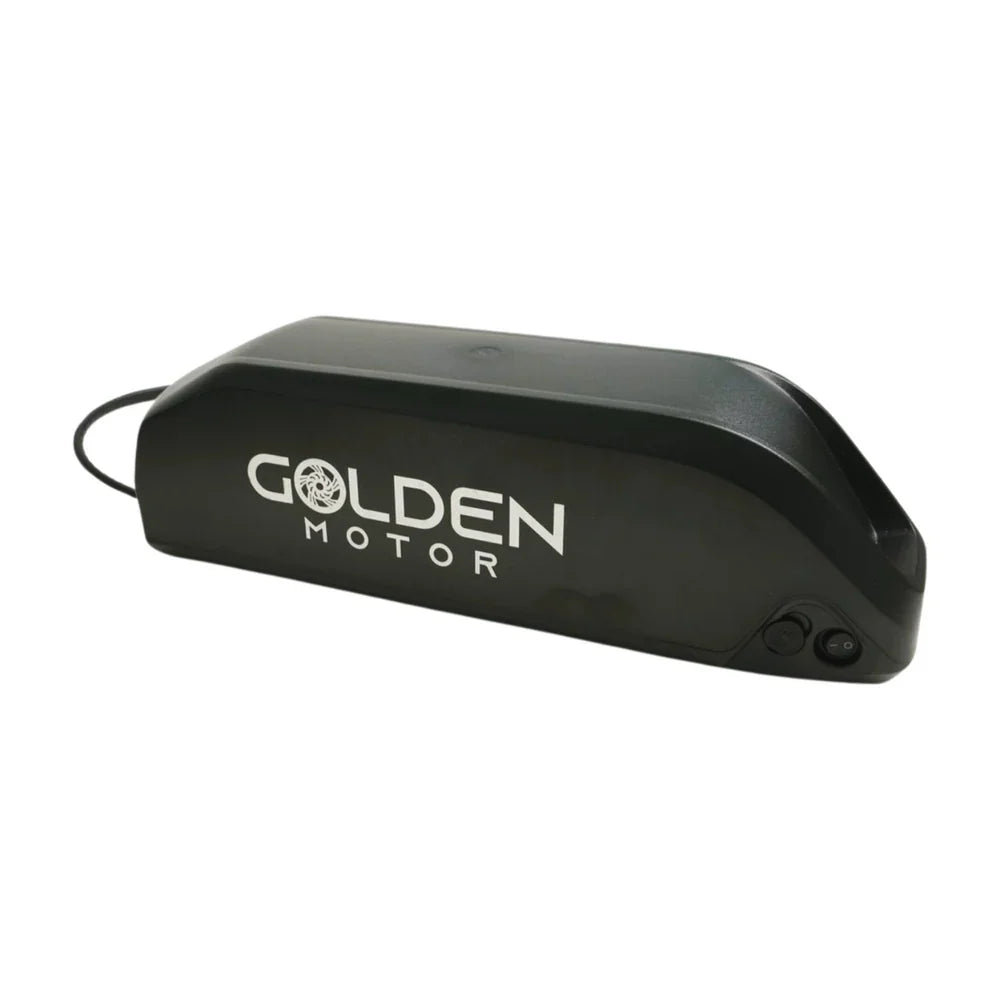

Name-brand lithium-ion cells are standard in the packs we sell: Samsung 35E (18650, 3,500mAh) in the 52V 17.5Ah and 21Ah Shark Packs, Samsung 50S (21700) in the 52V 25Ah Max Jumbo and the 72V 32Ah, LG MJ1 and LG M50L in the triangle packs, and EVE 50E (21700) in the 48V 20Ah. 18650 and 21700 are just cell sizes (18mm x 65mm and 21mm x 70mm). 21700s hold more per cell, so you can get more Ah in fewer cells.

Cell brand matters, but on a third-party pack the BMS quality, build and warranty matter just as much. Good cells behind a weak BMS will still cut out, or worse.

Watch for LiFePO4 too. It's a different chemistry with different voltages: a "48V" LiFePO4 pack is 16 cells, 51.2V nominal, and charges to 58.4V. It's heavy and long-lived, so it's more common on boats and BLDC builds than on bikes, and it needs its own LiFePO4 charger.

Connectors: discharge and charge ports

Every pack has two plugs: the discharge connector to the controller and the charge port.

Discharge connectors you'll see most:

• XT90: most Shark Packs. Rated for higher current and hard to plug in backwards.
• XT60: smaller, found on some 48V packs such as the 48V 20Ah.
• Anderson (small Anderson PowerPole): common on hub kit controllers. The heavy-duty battery cable we sell uses them.
• Anderson 120 / large high-current plugs: on big packs like the 72V 32Ah.

If your controller has Anderson and your pack has XT90, a small Anderson to XT90 adapter or a solder-on pigtail sorts it out. Don't cut and twist wires together.

Charge ports vary even more: Reention mini 3-pin (most Shark Packs), full-size XLR 3-pin, 5.5 x 2.5mm DC barrel, RCA and round ports. Reention mini 3-pin is sometimes listed as "mini-XLR," which is not the same plug as full XLR. When in doubt, take a photo of the port before ordering a charger.

E-bike battery chargers: match voltage, plug and current

A charger has to match three things:

1. Voltage and chemistry. 48V lithium-ion takes a 54.6V charger, 52V takes 58.8V, 72V takes 84V, and 48V LiFePO4 takes 58.4V. A 52V charger on a 48V pack overcharges it. A lithium-ion charger on LiFePO4 (or the reverse) is wrong too. Always check the output voltage printed on the charger label.
2. Plug. Same port as your pack (see above).
3. Current. Stay at or under the pack's listed max charge current. The 52V Shark Packs list 5A max, so a 5A charger is fine on those. Some packs, like the 48V 20Ah, list 3A.

Most Shark Packs come with a 3A charger. If you want faster charging, or you want to charge to 80% or 90% for longer pack life, the Variable 5 Amp Rapid Charger has an 80/90/100% setting. It comes in 48V and 52V versions with XLR, DC, RCA or Reention mini 3-pin plugs, so pick the voltage and plug that match your pack, and check that your pack allows 5A first.

Voltage and your other electronics

Your controller isn't the only thing on the battery. Displays, lights and horns powered from the pack all see the full-charge voltage.

• Check your display's voltage range before switching from 48V to 52V, or from 52V to 72V.
• Lights rated "24/36/48V" may not be happy at 58.8V. A DC-DC step-down converter fixes that.
• Throttles and brake sensors usually run off the controller's 5V supply, so they don't care about pack voltage.

A weak BMS just makes the bike cut out. Over-voltage can kill a controller the moment you connect.

Battery safety, charging and storage

• Use only the charger made for your pack, or one that exactly matches its voltage, chemistry and plug.
• Don't charge below freezing (the Shark Pack spec sheets give 0 to 45°C for charging).
• Charge somewhere you can keep an eye on it, on a hard surface, away from anything flammable.
• Don't open the pack, re-wrap it, or swap the BMS yourself. It's a fire risk and it voids the warranty.
• Stop using a pack that's swollen, cracked, smells hot or has been crashed hard.
• Don't wire two packs in parallel unless they're identical in voltage, capacity and age. Swapping packs mid-ride is safer.
• For storage, keep it cool and dry at partial charge. The Shark Pack listings say about half charge, topped up every 3 to 6 months. Check your pack's listing, since a few say different. A lithium pack left empty for months can drop so low the BMS won't wake up, and that isn't covered as a defect.

Quick buying checklist

1. Controller voltage range. Includes the full-charge voltage (54.6V, 58.8V, 84V).
2. Controller battery current. Your BMS continuous rating should be at or above it.
3. Wh for your distance. Use your own measured Wh per mile if you can.
4. Fit. Most battery listings have a printable cut-out template. Print it and hold it in your frame before you order. If it won't fit, look at slim packs, triangle packs or a rack mount.
5. Connector. Match the discharge plug to your controller, or plan an adapter.
6. Charger. Right voltage, right plug, and charge current within the pack's limit.

If you're running a 72V kit like the TorqueX Lightning Pie 72V 3000W (60A controller), the 72V 30Ah triangle pack is rated for controllers up to 80A. The rest are in the e-bike batteries collection. If you're still deciding on the motor itself, our guide on what wattage motor you need is a good place to start, and CYC owners can compare kits in Photon 2 vs Photon Pro vs X1 Pro Gen 4.

FAQ

Can I use a 52V battery on a 48V motor?

Often yes, if the controller is rated for 58.8V at full charge. Magic Pie 5 and Edge controllers accept 52V as their maximum. A Bafang BBS02 or BBSHD on 48V firmware can show Error 07 on a 52V pack until it's flashed with 52V firmware. Check the controller, not the motor.

Is 72V better than 52V?

Only if your controller, display and motor are built for it. On a kit designed for it, a 72V battery makes more power. On a 48V or 52V controller, a 72V pack (84V full) can destroy the controller.

What BMS rating do I need for a BBSHD?

The stock BBSHD controller pulls up to 30A, so 30A continuous is the minimum and 40A or more gives headroom. With an upgraded 60A controller like the TorqueX, you'd want a 60A continuous pack.

Why does my e-bike cut out at full throttle and then come back?

Usually the BMS is tripping because the controller pulls more current than the BMS is rated for. Use a pack with a higher continuous rating, or lower the controller's battery current limit.

How far will a 52V 17.5Ah battery go?

It holds about 910Wh, so it depends on your Wh per mile, and light pedal assist on flat ground uses far less than full throttle or steady climbing. Divide 910 by your own measured Wh per mile.

Can I use a 48V charger on a 52V battery?

No. A 48V charger stops at 54.6V, so a 52V pack will never fully charge. The reverse, a 52V (58.8V) charger on a 48V pack, overcharges it and is dangerous. Match the charger to the pack.

Not sure what your controller is rated for? Send us a photo of the label and the battery plug, and we'll tell you what fits.
